crystod-phonon#

Phonon analyses on top of phonopy data (POSCAR + FORCE_SETS, or FORCE_CONSTANTS with --readfc, or phonopy_params.yaml). Ten mode flags: --irreps, --fatband, --lt, --vector, --modulation, --vibration, --subgroup, --unfold, --visualize, --mode-resolved-fc; without a mode flag, --element alone lists the irreps of the atomic displacements at every special k point, and --irrep with --element places the isotropy subgroups of an irrep on a structure (section 04-01, no force data). Every mode that reads force data says so when they do not belong to the POSCAR (see Force data that do not belong to the POSCAR).

I want to …

command

see which irreps the displacements of the atoms of an element carry at every special k point, no forces

crystod-phonon -c POSCAR --element F (no mode flag; the decomposition of crystod -c POSCAR --element F --orbital p)

get the displacement pattern of every isotropy subgroup of an irrep (or of coupled irreps) on the atoms of an element, no forces

crystod-phonon -c POSCAR --element F --irrep R4+ (no mode flag; --irrep R4+ M3+ for the coupled rows, --qpoint X for every irrep at X)

label every mode with its irrep

crystod-phonon --irreps --dim 4 4 4 -c POSCAR

draw the dispersion with the irrep of every level at the special points

crystod-phonon --irreps --dim 4 4 4 -c POSCAR (the figure, phonon_irreps.pdf, comes with every --irreps run)

know which Gamma modes are IR / Raman active or silent

crystod-phonon --irreps --dim 4 4 4 -c POSCAR (no forces: --vibration -c POSCAR --qpoint GM)

get the form of the Raman tensor of each Raman-active mode

crystod-phonon --irreps --dim 4 4 4 -c POSCAR --raman-tensor (no forces: --vibration -c POSCAR --qpoint GM --raman-tensor)

get mode effective charges and the static dielectric constant

crystod-phonon --irreps --dim 4 4 4 -c POSCAR --nac (with BORN)

see which Wyckoff orbit gives which Gamma modes

crystod-phonon --vibration -c POSCAR --qpoint GM

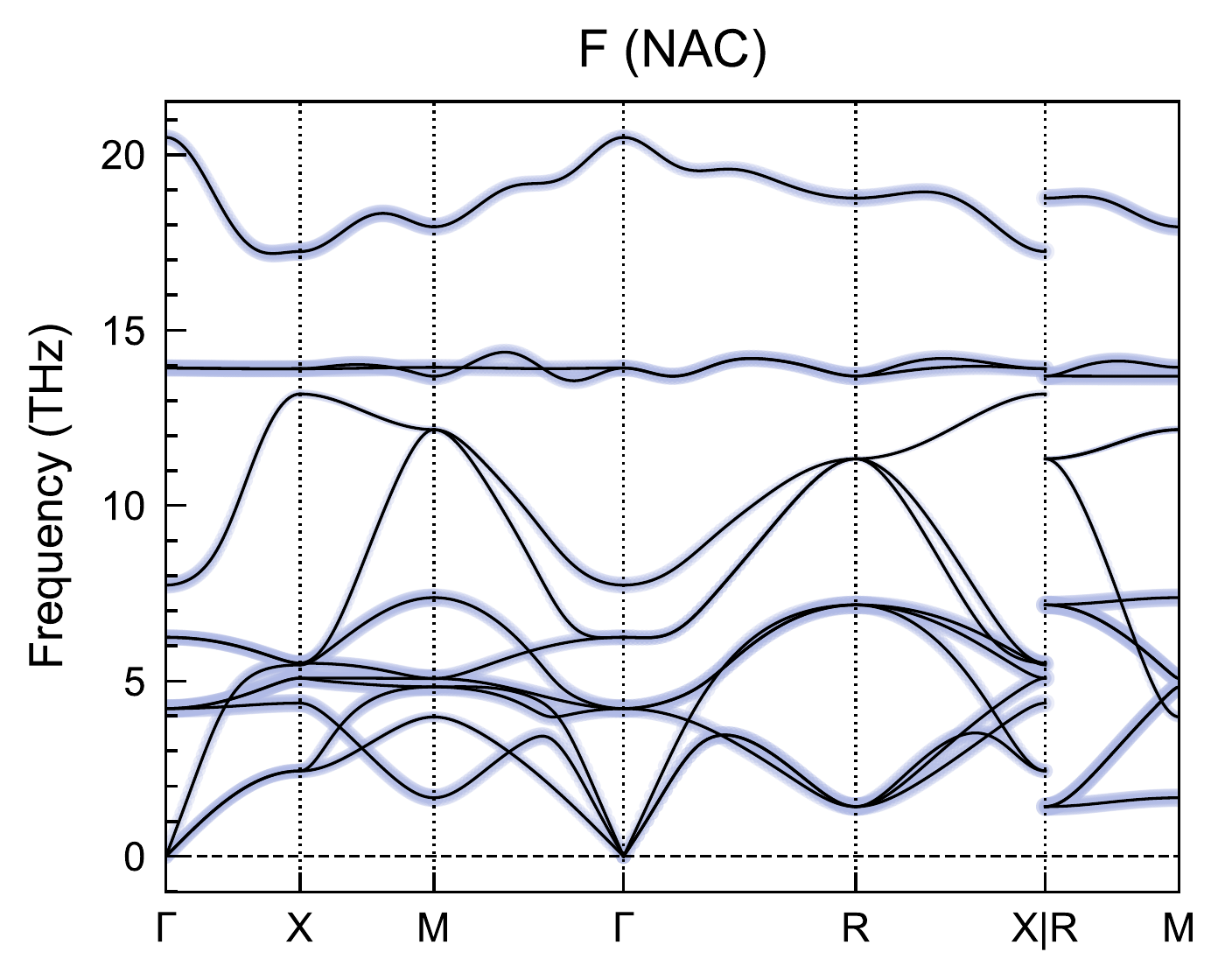

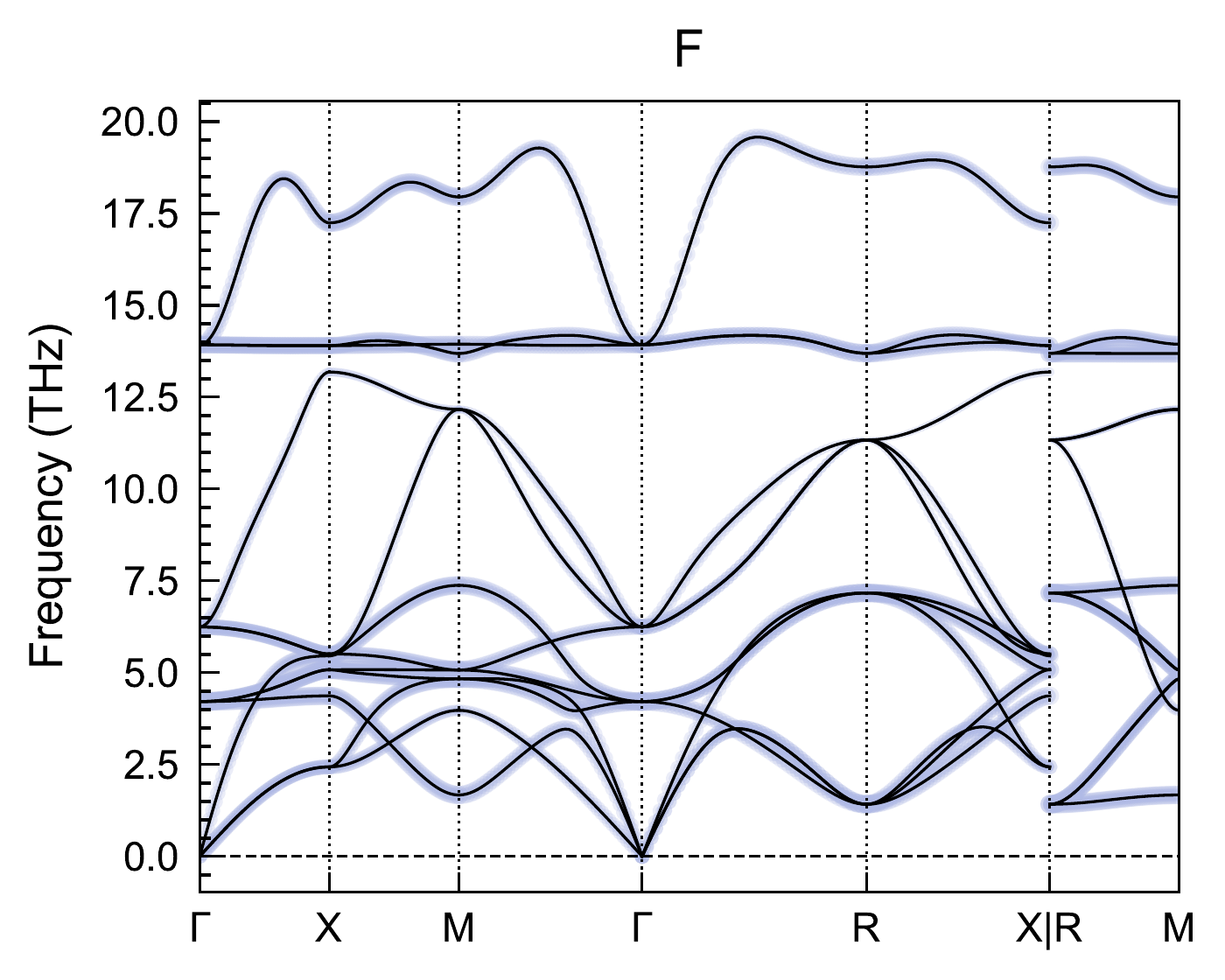

see which element carries which branch

crystod-phonon --fatband --dim 4 4 4 -c POSCAR

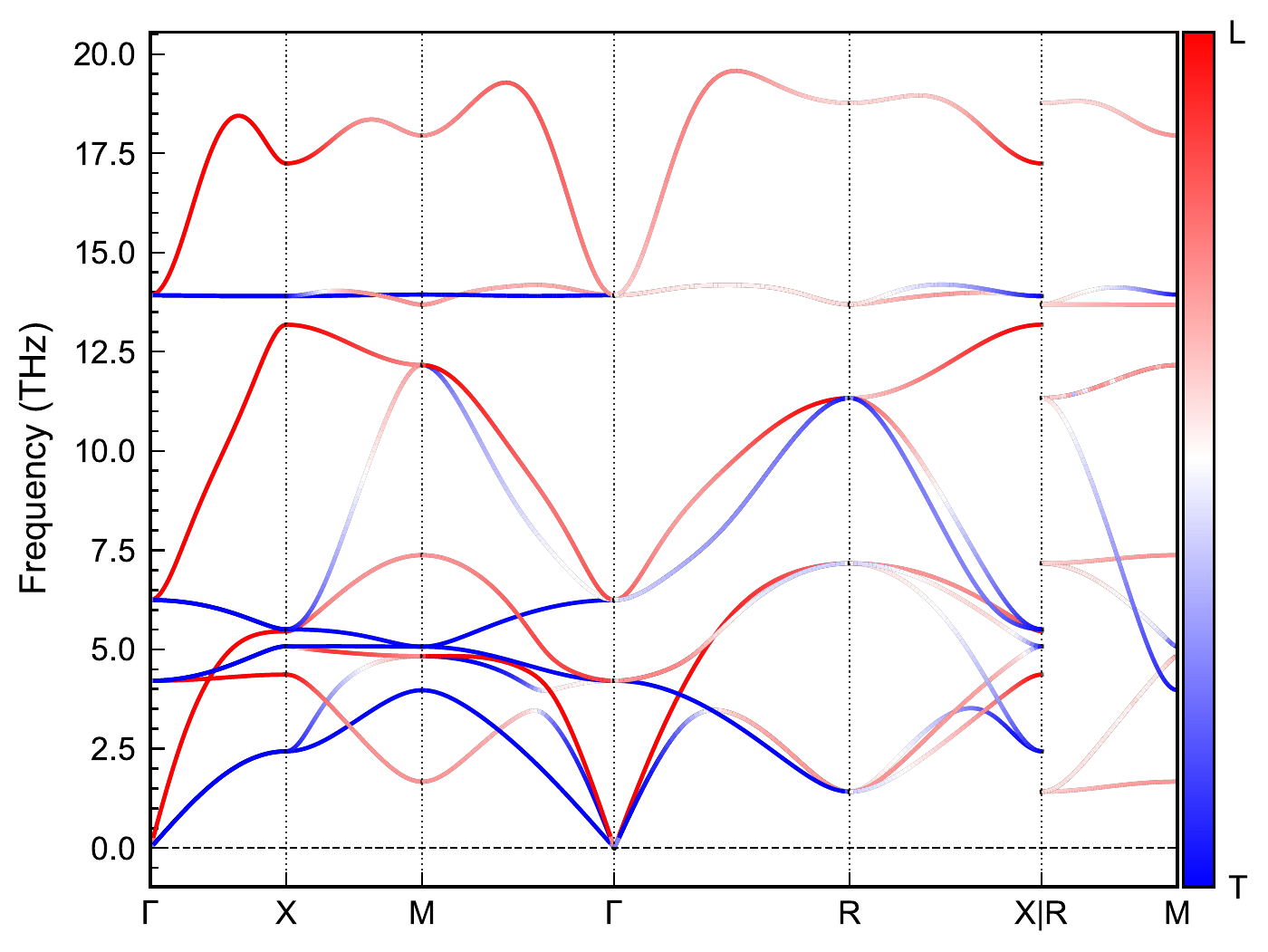

see which branch is longitudinal

crystod-phonon --lt --dim 4 4 4 -c POSCAR

draw one mode as arrows in VESTA

crystod-phonon --vector --dim 4 4 4 -c POSCAR --qpoint GM --mode 4

freeze a mode into a structure

crystod-phonon --modulation -c POSCAR --qpoint 0.5 0.5 0.5 --mode 1 2 3

list the symmetry-allowed modes, no forces

crystod-phonon --vibration -c POSCAR --qpoint R

know which phases an instability can reach

crystod-phonon --subgroup --dim 4 4 4 -c POSCAR

… and get those structures

crystod-phonon --subgroup --dim 4 4 4 -c POSCAR --modulate

see the phonons of a distorted phase in the zone of its parent, with the parent irreps

crystod-phonon --unfold --child-poscar POSCAR_child --child-dim 2 2 2 --parent-poscar POSCAR_parent --parent-dim 2 2 2

see every mode as arrows and animation in the browser, by irrep, with the dispersion

crystod-phonon --visualize --dim 4 4 4 -c POSCAR (--bond Ti O 2.1 adds the bonds and polyhedra, --all-irreps the midpoints of the path segments)

get the force constant (stiffness) and effective mass of every mode, and the stability of each irrep subspace

crystod-phonon --mode-resolved-fc --dim 4 4 4 -c POSCAR

04-01. Displacement patterns of given irreps (--irrep with -c)#

Example directory: example/04-01_phonon_irrep (testsuite section 04-01); after pip install: crystod-example 04-01

The three cells of the example directory

The directory holds three cells, each in its own sub-directory with a README of commands and their output: La3Ni2O7/ (PPOSCAR_La3Ni2O7_I4mmm, I4/mmm, the O atoms: the survey, --irrep X3-, --irrep X3- X2+ and --qpoint X, the example of this section), ScF3/ (PPOSCAR_ScF3_Pm-3m, Pm-3m, the F atoms: the survey, --irrep R4+, --irrep R4+ M3+ and --qpoint X, the commands of the table at the top of this page) and SrTiO3/ (PPOSCAR_SrTiO3_Pm-3m, Pm-3m with Ti at the origin, the O atoms: the survey, --irrep R4+ and --irrep R4+ M3+).

The labels depend on the origin of the cell. With Ti at the origin the O displacements at R are R1+ + R3+ + R4+ + R5+; in example/test_POSCARs/221_PPOSCAR_SrTiO3, with Sr at the origin, they are R2- + R3- + R4- + R5-, and --element O --irrep R4+ stops with an ERROR: line. The same distortions carry R5- and M2+ there instead of R4+ and M3+: --irrep R5- and --irrep R5- M2+ on that cell give the rows of --irrep R4+ and --irrep R4+ M3+ on the Ti-origin cell, with displaced structures that match row by row.

crystod-group --parent SG --irrep IR tells which subgroup every order-parameter direction of an irrep gives, without a structure. With a structure and an element, and no mode flag, crystod-phonon places every row of that table (with several irreps, every row of the coupled table) on the atoms of the element: the displacement pattern that lowers the symmetry to the row’s subgroup, in a supercell common to every arm of every star, with the space group of the displaced structure identified again by spglib and shown next to the table’s, the displacement listing, one VESTA file with arrows and one displaced structure per row. No force data is read. These are symmetry-adapted displacement patterns, not eigenvectors of a dynamical matrix: a real distortion of the row’s symmetry is a combination of the copies of its irreps, with amplitudes that only a force calculation (or an experiment) fixes. It is the displacement counterpart of crystod-mag --irrep with -c. With the element alone (no --irrep, no --qpoint) the command first tells which irreps there are: the decomposition of the displacement (polar-vector) representation of the element’s atoms at every special k point, as the crystod-mag -c POSCAR --element EL survey does for spins.

See also

Theory: Displacement patterns of the isotropy subgroups on a crystal — the displacement modes that transform with the matrices of the table, why the group of every pattern is the row’s group by construction, copies and free amplitudes.

Input

Command

Output

primitive POSCAR, element

crystod-phonon -c PPOSCAR_La3Ni2O7_I4mmm --element O

the survey: for every special k point of the irrep tables the decomposition of the displacements of O (the line of the --irrep/--qpoint header; as a multiset the line of crystod -c POSCAR --element O --orbital p, p orbitals being polar vectors, except that a complex-conjugate pair at a time-reversal-invariant point is one term under its pair label, A1A3(2) for A1(1) + A3(1) of the same multiplicity, as in the headers and the crystod-mag survey, where crystod lists the two members); several elements: one line per element and the total; no structures; report saad_<formula>_<element>_survey (saad_... = symmetry-adapted atomic displacements; saad_<formula>_<El1>-<El2>_survey)

primitive POSCAR, element, one irrep

crystod-phonon -c PPOSCAR_La3Ni2O7_I4mmm --element O --irrep X3-

terminal: the decomposition of the displacements of O at the k point, the copies of the irrep, the supercell, the table of crystod-group --parent I4/mmm --irrep X3- with a row number and the column structure (the space group spglib finds on the displaced structure), then one block per row and copy (letters, displacement sizes, space group and point group of the displaced structure, check, polarization allowed or not, displacement listing in Angstrom); files: POSCAR_<formula>_disp_<IR>_<NN>_<SG>_<symbol>.vesta (arrows) and M<POSCAR name>_<IR>_<NN>_<SG>_<symbol> (displaced structure) per row, the supercell S<POSCAR name>_<IR>, the report saad_<formula>_<element>_<IR>

several irreps

... --irrep X3- X2+

the table of every irrep alone (as crystod-group --parent), then the coupled table with the check column, one block per coupled row

every irrep of a k point

... --qpoint X (or --qpoint 0 0 1/2, primitive reciprocal basis of the POSCAR)

every irrep the displacements of the element contain at X, each with its whole table and blocks, and a summary; one supercell S<POSCAR name>_X; report saad_<formula>_<element>_X

the same, tables only

add --classify-only

the tables with the check column; no blocks, no files; report ..._classify

one direction

add --order-parameter "0 a 0 c"

one block: the row of its stratum, its group from the table and from the structure; numbers are amplitudes; report ..._op

weights of the irreps

add --coefficients 1 0.5

every irrep’s part scaled to largest displacement 1, then weighted (finite, nonzero, none below 1e-3 of the largest)

all atoms

--element La Ni O --irrep X3-

one pattern per choice of copies over the elements and Wyckoff orbits (at most 6 per row, else the first with a NOTE)

one choice of copies

add --copies 2 1

one copy number per irrep, as listed under * Copies in the displacement representation *

the size of the displacement

add --amplitude 0.05

the largest displacement of every displaced structure in Angstrom (default 0.1; at least 20 times --tolerance); the VESTA arrows keep their length

conventional cell (I, F, C, A, R lattices)

add --conventional

every pattern written in the conventional cell times the smallest multiples commensurate with every arm (the same table and groups); a Display cell: line; names with _conv

cd example/04-01_phonon_irrep/La3Ni2O7
crystod-phonon -c PPOSCAR_La3Ni2O7_I4mmm --element O
* Displacement (polar-vector) Irreducible Representations of O sites *
  k point (primitive): GM [0.0, 0.0, 0.0]
    2.0 [GM1+(1)] + 3.0 [GM3-(1)] + 3.0 [GM5+(2)] + 4.0 [GM5-(2)] + 1.0 [GM2+(1)] + 1.0 [GM4-(1)]
  k point (primitive): X [0.0, 0.0, 0.5]
    3.0 [X1+(1)] + 2.0 [X1-(1)] + 2.0 [X3+(1)] + 3.0 [X3-(1)] + 2.0 [X4+(1)] + 3.0 [X4-(1)] + 2.0 [X2+(1)] + 4.0 [X2-(1)]
  k point (primitive): M [0.5, 0.5, 0.5]
    2.0 [M1+(1)] + 3.0 [M3-(1)] + 3.0 [M5+(2)] + 4.0 [M5-(2)] + 1.0 [M2+(1)] + 1.0 [M4-(1)]
  k point (primitive): N [0.0, 0.5, 0.0]
    6.0 [N1+(1)] + 4.0 [N1-(1)] + 3.0 [N2+(1)] + 8.0 [N2-(1)]
  k point (primitive): P [0.25, 0.25, 0.25]
    3.0 [P1(1)] + 2.0 [P4(1)] + 5.0 [P5(2)] + 2.0 [P2(1)] + 4.0 [P3(1)]

Use --qpoint K for the displacement patterns of every irrep at one k point, --irrep IR [IR2 ...] for those of given irreps (VESTA files with arrows and displaced POSCARs).

* Output files *
  Report written to: saad_La3Ni2O7_O_survey (this output)

The multiplicity is the number of copies of the irrep (X3- three times: the three copies of the next run); the dimension in brackets is that of the small irrep. Then the patterns of one irrep:

crystod-phonon -c PPOSCAR_La3Ni2O7_I4mmm --element O --irrep X3-
* Copies in the displacement representation *
  X3-: 3 copies: c1 = O(8g), c2 = O(4e), c3 = O(2a)
  X3- c1: components 1, 2 = displacements along z, z
  one pattern per choice of copies; any mixture of the copies of an irrep with
  the same order parameter has the same space group
  These are symmetry-adapted displacement patterns, not eigenvectors of a
  dynamical matrix: a real distortion of a row's symmetry combines the copies of
  its irreps with amplitudes that only a force calculation fixes.

* Supercell *
  Commensurate supercell: 2x2x2 (8 primitive cells, 96 atoms), common to every arm of X3-
  displacement modes: |O(g) Psi - Psi D(g)| <= 1.9e-16 over the elements of G/T_S, Psi^T Psi = c 1 within 5.4e-17
  amplitude: largest displacement 0.1 A in every displaced structure (--amplitude); VESTA arrows scaled to a largest length of 1.5 A

* Order parameter directions and isotropy subgroups *
No.  irrep                subgroup           size  index structure
1    X3-(0;a)             63 Cmcm            2     4     63 Cmcm same (x3)
2    X3-(a;a)             136 P4_2/mnm       4     4     136 P4_2/mnm same (x3)
3    X3-(a;b)             58 Pnnm            4     8     58 Pnnm same (x3)

* 2 c1: X3-(a;a) -> 136 P4_2/mnm *
  copies: X3- c1 = O(8g)
  order parameter: a = 1
  reproduce: --order-parameter "0.5 0.5" --copies 1
  displacements: |u| = 0.1000 on 16 of 56 O atoms; zero on 40 atoms (no displacement in X3-)
  space group (displaced structure): 136 P4_2/mnm, point group 4/mmm, size 4, index 4
  check (on the displaced structure as written): table 136 P4_2/mnm (size 4, index 4), structure 136 P4_2/mnm same; 32 elements of G/T_S fix the displacements, 32 the order parameter
  allowed by symmetry: no electric polarization (non-polar point group 4/mmm); inversion kept
  displacements in Angstrom (Cartesian, POSCAR axes; atoms numbered as in the supercell POSCAR) ([2, 2, 2] supercell): 16 O atoms move, 40 stay
    O42: [0.0000, 0.0000, -0.1000]
    O43: [0.0000, 0.0000, 0.1000]
  ...

With --irrep X3- X2+, the coupled table and the last row:

* Order parameter directions and isotropy subgroups (coupled) *
No.  irrep                subgroup           size  index structure
1    X3-(0;a) X2+(0;c)    36 Cmc2_1          2     8     36 Cmc2_1 same (x6)
2    X3-(0;a) X2+(c;0)    62 Pnma            4     8     62 Pnma same (x6)
3    X3-(a;a) X2+(c;c)    38 Amm2            4     16    38 Amm2 same (x6)
4    X3-(0;a) X2+(c;d)    26 Pmc2_1          4     16    26 Pmc2_1 same (x6)
5    X3-(a;b) X2+(0;c)    31 Pmn2_1          4     16    31 Pmn2_1 same (x6)
6    X3-(a;b) X2+(c;d)    6 Pm               4     32    6 Pm same (x6)

* 6 c1-1: X3-(a;b) X2+(c;d) -> 6 Pm *
  copies: X3- c1 = O(8g); X2+ c1 = O(8g)
  order parameter: X3-: a = 1, b = 0.618; X2+: c = 1, d = 0.7071
  parts: X3- : X2+ = 1 : 1 (each part scaled to largest displacement 1, then weighted)
  the relative amplitudes are not fixed by symmetry: other nonzero values that
  keep the pattern of the label (no new zero or equal components) give the
  same group
  reproduce: --order-parameter "0.437016 0.270091 0.414498 0.293094" --copies 1 1
  displacements: 4 distinct magnitudes on 56 O atoms: 0.1000 (x8), 0.0727 (x8), 0.0718 (x8), 0.0208 (x8); zero on 24 atoms (no displacement in X3-, X2+)
  space group (displaced structure): 6 Pm, point group m, size 4, index 32
  check (on the displaced structure as written): table 6 Pm (size 4, index 32), structure 6 Pm same; 4 elements of G/T_S fix the displacements, 4 the order parameter
  allowed by symmetry: electric polarization in the plane normal to [0, 0, 1] (Cartesian, POSCAR axes; polar point group m); inversion broken
  ...

How to read it:

  • Rows are those of crystod-group --parent SG --irrep ..., in the same order, with the same labels, groups, sizes and indices: the pattern of a row is built from the order parameter the table identifies its group from, so its group is the row’s group by construction. The column structure and the check (on the displaced structure as written): line are the independent check: spglib on the displaced structure exactly as the M<POSCAR name>_... file carries it (all atoms, 14 decimals, the tolerance of --tolerance, default 1e-5 A), its space-group number, the size from the atoms of its primitive cell and the index from its point group, and the numbers of elements of G/T_S that fix the displacements and the order parameter. A disagreement is printed as a NOTE on the row.

  • Copies. An irrep that occurs more than once in the displacements of the chosen atoms (X3- three times on O of La3Ni2O7, once per Wyckoff orbit) gives one pattern per choice of copies (c1, c2, … in the block titles and file names); the copies are split by element, by Wyckoff orbit and, at q = 0, into the combination with a net shift of the orbit and those without (O [net shift], O [no net shift]). Any mixture of copies with the same order parameter has the same group; which mixture a crystal adopts is not a question of symmetry.

  • Letters and amplitudes. A row with several letters is shown with generic values (printed): other values with the same pattern of zero and equal components give the same group. The largest displacement of every structure is --amplitude (default 0.1 A: far above the check tolerance, small against the interatomic distances); the VESTA arrows are scaled to a largest length of 1.5 A whatever the amplitude. An amplitude below 20 times --tolerance, or a pattern whose smallest symmetry-breaking displacement (the least a broken parent operation moves an atom off its image) is, is refused, since the check could not see the distortion.

  • Reproduce. reproduce: --order-parameter "..." (with --copies when an irrep has several copies, and --conventional), given back with the same --irrep, rebuilds the same displaced structure (within the 6 significant digits of the numbers).

  • Direction components refer to the irrep basis of the table (as with crystod-group --parent), not to the axes of the POSCAR; the listing gives the Cartesian displacements, numbered as the atoms of the supercell POSCAR.

  • Allowed by symmetry. The line names the point group of the displaced structure and what follows from it alone: an electric polarization (along the axis, or in the plane, that the operations keeping the pattern leave fixed, in Cartesian POSCAR axes) or none, inversion kept or broken, and a chiral structure when the point group has no improper operation.

  • Several irreps. The patterns are those of the coupled rows (every irrep condensed); the parts are scaled to largest displacement 1 each and weighted, by --coefficients or by the first of 1 : 1, 1 : 0.5, 1 : 0.75, … under which no atom that a part moves stays at rest, with the reason when it is not 1 : 1.

  • Conventional cell. As in crystod-mag --irrep --conventional: the modes, weights and counts stay on the diagonal supercell, the displacements are re-tiled onto the conventional cell of the standard primitive input, and an input cell off the standard primitive setting gives a NOTE under the Display cell: line.

Errors

An irrep that the displacements of the element(s) do not contain, an unknown label, an irrep given twice, --irrep together with --qpoint (the label carries its k point), a missing --element (all atoms: list every element), a cell that is not primitive and a point of --qpoint that is not a special point (the message of crystod-group --parent SG --kpoint K, with the list of the tabulated points) stop with an ERROR: line and no files; every invalid irrep is reported at once:

$ crystod-phonon -c PPOSCAR_La3Ni2O7_I4mmm --element O --irrep GM1-
ERROR: GM1- is not contained in the displacement representation of O at GM [0.0, 0.0, 0.0]; the decomposition there is 2.0 [GM1+(1)] + 3.0 [GM3-(1)] + 3.0 [GM5+(2)] + 4.0 [GM5-(2)] + 1.0 [GM2+(1)] + 1.0 [GM4-(1)]

The options of the modes with force data (--dim, --readfc, --nac, --band, --mode, --yaml, --output, …) are refused, and --irrep, --order-parameter, --coefficients, --copies and --classify-only are refused together with a mode flag (--irreps is the mode flag of the phonon irrep labels; --irrep is not an abbreviation of it). The survey (no --irrep, no --qpoint) writes no structures and refuses --amplitude, --conventional, --classify-only, --order-parameter, --coefficients and --copies; it takes --tolerance and --no-files, and a cell that is not primitive, an unknown element or an element given twice stop it as they stop the other forms. On a structure off its ideal positions the irreps that cannot be labelled at the tolerance appear as irrep_N with a NOTE, as in the header of the other forms. --coefficients with a zero, nan or inf value, the wrong number of values or a weight below 1e-3 of the largest, --copies beyond the copies of an irrep and a non-positive --amplitude are refused the same way. The supercell is refused above 64 primitive cells or 12 cells along one axis (with --conventional: 12 conventional cells along one axis or 256 primitive cells).

Python API
# in example/04-01_phonon_irrep/La3Ni2O7
from phonopy.interface.vasp import read_vasp
from crystod import phonon

result = phonon.displacement_irrep_arrangements(read_vasp("PPOSCAR_La3Ni2O7_I4mmm"), ["O"], ["X3-"])
[(a.number, a.tag, a.row.label, a.row.number, a.check) for a in result.arrangements][:2]
# [(1, 'c1', 'X3-(0;a)', 63, 'same'), (1, 'c2', 'X3-(0;a)', 63, 'same')]
a = result.arrangements[0]              # phonon.DisplacementArrangement
a.displacements.shape, a.group_number, a.point_group   # ((96, 3), 63, 'mmm')

survey = phonon.displacement_irrep_survey(read_vasp("PPOSCAR_La3Ni2O7_I4mmm"), ["O"])
[(name, lines[0][1]) for name, q, lines in survey.kpoints][3]   # phonon.DisplacementSurvey
# ('N', '6.0 [N1+(1)] + 4.0 [N1-(1)] + 3.0 [N2+(1)] + 8.0 [N2-(1)]')

DisplacementIrrepAnalysis has irreps, kpoints, decompositions, copies, singles, rows (row.label, number, symbol, size, index), arrangements, the written cell (supercell_lattice, supercell_symbols, supercell_positions; supercell_sizes the diagonal cell of the modes), amplitude and residuals; DisplacementArrangement has row, copies, tag, order_parameter, letters, field (largest 1), displacements (Angstrom, every atom of the written cell), displaced_positions, group_number, group_symbol, point_group, found_size, found_index, check, note, reproduce, vesta_name and poscar_name. The function writes no files.

04-02. Phonon irreps (--irreps)#

Example directory: example/04-02_phonon_bandirrep (testsuite section 04-02); after pip install: crystod-example 04-02

Note

The example/... paths on this page are those of a clone of the repository, used from its root. After pip install CrystOD, run crystod-example CC-NN (the number of the example directory) in your working directory first: it copies that directory and the shared test_POSCARs/ into ./example/, and the commands then run from there unchanged (see crystod-example).

Which symmetry type (irreducible representation, irrep) does each phonon mode belong to? --irreps labels the phonon modes at the special q points with their irreps, writes them with their frequencies to phonon_irreps.yaml, and draws next to it the phonon dispersion with these labels, phonon_irreps.pdf (below).

See also

Theory: Irrep labels and the frame of a structure — why one mode can carry different names in different settings of the same crystal, and how a k point on a symmetry line is labeled; Phonon irrep labels on the dispersion — how the labels are placed on the bands of the figure.

Input

Command

Output

POSCAR + FORCE_SETS of a --dim supercell

crystod-phonon --irreps --dim 4 4 4 -c POSCAR

phonon_irreps.yaml (irrep and frequency of every mode at every special q point), phonon_irreps.pdf (dispersion with the labels); terminal: Γ activity summary, k path

POSCAR + FORCE_CONSTANTS

add --readfc

the same, from the force constants

the same + BORN

add --nac

the same with the non-analytical term correction; at Γ also the mode effective charges and the dielectric constant (section 04-03)

the same

add --all-irreps

phonon_irreps_all.yaml, phonon_irreps_all.pdf: also the midpoints of the path segments (the symmetry lines)

the same

add --band "..."

the figure along a path of your own

cd example/04-02_phonon_bandirrep/SrTiO3_Pm-3m
crystod-phonon --irreps --dim 4 4 4 -c 221_PPOSCAR_SrTiO3
# -> phonon_irreps.yaml, phonon_irreps.pdf   (--readfc reads FORCE_CONSTANTS instead of FORCE_SETS)

The file lists, for every special q point, the modes grouped into degenerate sets with their ISO-IR (ISOTROPY, Miller-Love) irrep labels and frequencies in THz — note the antiferrodistortive soft mode at R, an imaginary (negative-frequency) R5- triplet:

space_group: Pm-3m
nac: false
special_points:
- q_label: GM
  q_position: [0.0, 0.0, 0.0]
- q_label: R
  q_position: [0.5, 0.5, 0.5]
- q_label: X
  q_position: [0.0, 0.5, 0.0]
- q_label: M
  q_position: [0.5, 0.5, 0.0]

irreps:
- q_label: GM
  q_position: [0.0, 0.0, 0.0]
  activity_summary: GM4- x4 (3 IR, 1 acoustic), GM5- x1 (silent)
  band_sets:
  - band_indices: [1, 2, 3]
    irrep_label: ['GM4-(3)']
    mulliken: T1u
    frequency:   0.0000003685
    activity: [acoustic]
  - band_indices: [4, 5, 6]
    irrep_label: ['GM4-(3)']
    mulliken: T1u
    frequency:   2.6629186664
    activity: [IR]
  ...

- q_label: R
  q_position: [0.5, 0.5, 0.5]
  band_sets:
  - band_indices: [1, 2, 3]
    irrep_label: ['R5-(3)']
    frequency:  -1.0867090338
  ...

How to read the output:

  • special_points: the special q points surveyed, with their positions in fractions of the primitive reciprocal basis.

  • band_sets: the modes of a q point grouped into degenerate sets. band_indices are 1-based, so a level can be fed straight back into --vector --mode or --modulation --mode; irrep_label is the ISO-IR label with the dimension in parentheses; frequency is in THz, negative for an imaginary mode (R5-(3) at -1.087 THz).

  • At Γ each set also carries the Mulliken symbol of its irrep in a mulliken: line after irrep_label:, and its spectroscopic activity in an activity: line (section 04-03); activity_summary sums them up.

  • The terminal prints the Γ activity summary, the k path of the figure and the names of the two files.

  • The name R5- refers to the setting of the input file, which has Sr at the origin; with Ti at the origin, or with an origin that is not a standard one, the same mode is R4+ — see Irrep labels and the frame of a structure for the rules every command follows (origin, axes, supercells, the names of -k stars).

The file phonon_irreps.yaml
  • -o FILE writes the YAML file to another path (-o SrTiO3_irreps.yaml, also with --all-irreps below), and the figure next to it with the same name and .pdf (SrTiO3_irreps.pdf); the * Output files * block at the end of the run names the files written.

The file is YAML, and any YAML library reads it (yaml.safe_load); crystod.phonon.read_phonon_irreps returns it as a dictionary and checks it:

key

content

space_group

Hermann-Mauguin symbol

nac

true with --nac

dielectric_electronic, dielectric_static

eps_inf and eps_0, 3x3 (only with --nac)

special_points

list of q_label, q_position (fractions of the primitive reciprocal basis)

k_path, path_midpoints

the seekpath path and the midpoints of its segments, each with q_label, segment, q_position (only in phonon_irreps_all.yaml)

irreps

one entry per q point: q_label, q_position, segment (at a path midpoint), activity_summary (at Γ), band_sets

band_sets

one entry per degenerate set: band_indices (1-based), irrep_label (list; a set holding several irreps lists them all), frequency (THz, negative for an imaginary mode), and at Γ mulliken, activity and, with --nac, mode_effective_charge and dielectric_contribution

from crystod import phonon

data = phonon.read_phonon_irreps("phonon_irreps.yaml")
for point in data["irreps"]:
    for band_set in point["band_sets"]:
        print(point["q_label"], band_set["band_indices"],
              band_set["irrep_label"], band_set["frequency"])
Force constants (--readfc)

The example directories carry FORCE_SETS. For --readfc, write FORCE_CONSTANTS from it with phonopy 4 first, as the README of each 04-02_phonon_bandirrep directory does:

phonopy-init -d -c 221_PPOSCAR_SrTiO3 --dim 4 4 4
phonopy phonopy_disp.yaml --writefc --fc-calc traditional
crystod-phonon --irreps --dim 4 4 4 -c 221_PPOSCAR_SrTiO3 --readfc
  • With --fc-calc traditional these are the force constants crystod-phonon builds from FORCE_SETS, and phonon_irreps.yaml is the same up to the ~1e-7 THz noise of the acoustic modes at Γ (phonopy’s default fit, symfc, shifts the SrTiO3 frequencies by up to 0.004 THz).

  • Do not leave a FORCE_CONSTANTS next to FORCE_SETS unless you mean to use it: phonopy reads a FORCE_CONSTANTS it finds in the working directory even when crystod-phonon hands it FORCE_SETS (no --readfc), and that file then wins, so the “FORCE_SETS” run silently uses the force constants.

NAC and the BORN file (--nac)#

The non-analytical term correction is applied only with --nac, in every mode that reads force data (--irreps, --fatband, --lt, --vector, --modulation, --subgroup; not --unfold, which refuses --nac): it then reads BORN from the working directory (--modulation also looks next to the cell file; with --yaml, the NAC parameters stored in the yaml come first, as in phonopy), and stops with an error when there is none. Without --nac a BORN file lying in the directory is not read. The header of phonon_irreps.yaml records the choice (nac: true / nac: false), and the terminal says where the charges came from:

NAC: Born effective charges and dielectric tensor read from BORN.

At Γ itself phonopy applies no q direction, so the --irreps labels and frequencies at GM are those of the TO modes either way; NAC changes the frequencies near Γ, e.g. the LO branch of a --vector or --modulation run at a small q.

Force data that do not belong to the POSCAR#

Every mode that reads FORCE_SETS or FORCE_CONSTANTS checks the raw (unsymmetrized) force constants for the permutation symmetry Φ(a,b) = Φ(b,a)T and prints a NOTE when it fails by more than max(0.05 eV/Ų, 0.02 max |Φ|); clean data stay below a fortieth of that (at most 0.01 eV/Ų in example/). The usual cause is a force calculation on a supercell ordered differently from phonopy’s supercell of the POSCAR: another atom order, or a coordinate such as 0.9999999999999999 that the force program wrapped to 0, which swaps periodic images. Γ can still look right while every other q point is wrong:

  NOTE: raw force constants break the permutation symmetry Phi(a,b) = Phi(b,a)^T by 3.17 eV/A^2 (max
        |Phi| 24.6): FORCE_SETS probably does not match this POSCAR's supercell order (atom order or
        wrapped coordinates); results at q other than Gamma are wrong. Coordinates at 0.99999999...
        wrap differently in different programs; generate and analyze with the identical POSCAR text.

The last sentence appears when the POSCAR has a coordinate within 1e-8 of 1 (or outside [0, 1)). A FORCE_CONSTANTS file symmetrized when it was written carries no trace of the mismatch, and a phonopy yaml (--yaml) is not checked.

Symmetry lines as well (--all-irreps)#

The default survey covers the special points. --all-irreps additionally labels the midpoint of every seekpath path segment — the symmetry lines (DT, Z, SM, LD, S, T, …) — and writes phonon_irreps_all.yaml instead, so both surveys can coexist in one directory:

crystod-phonon --irreps --dim 4 4 4 -c 221_PPOSCAR_SrTiO3 --all-irreps
# -> phonon_irreps_all.yaml, phonon_irreps_all.pdf
k_path: GM-X-M-GM-R-X | R-M  # seekpath
path_midpoints:  # midpoints of the k-path segments, ISO-IR k-vector types
- q_label: DT
  segment: GM-X
  q_position: [0.0, 0.25, 0.0]
- q_label: Z
  segment: X-M
  q_position: [0.25, 0.5, 0.0]
  ...

- q_label: DT
  segment: GM-X
  q_position: [0.0, 0.25, 0.0]
  band_sets:
  - band_indices: [1, 2]
    irrep_label: ['DT5(2)']
    frequency:   2.1278014037
  - band_indices: [3]
    irrep_label: ['DT1(1)']
    frequency:   3.7542651577
  ...

How to read the output:

  • The entries of the lines follow those of the special points in the same irreps list and carry the segment key; a midpoint whose labeling fails gets band_sets: [].

  • This is the labeling that tells a branch apart along a line — which of the two DT5 branches is which — and it is slower than the special-points-only default.

  • The same physical k point gets the same label whichever arm of the star or copy k + G is given (the rule is in k points: star arms, k + G, lines and -k).

  • The k_path and segment names are seekpath’s; for an input outside the ISO-IR setting, an endpoint to which the frame of the labels gives another ISO-IR type than spglib’s frame, in which seekpath names its points, is printed with its ISO-IR name (the seekpath P of a shifted I-4 cell, which carries PA labels, as GM-X-PA-N-...).

crystod-phonon --visualize --all-irreps shows the modes at these midpoints in the browser, with the same labels (section 04-10).

The dispersion with the labels (phonon_irreps.pdf)#

phonon_irreps.yaml lists the irreps point by point; every --irreps run also puts them on the phonon dispersion. It computes the bands along the k path with phonopy, labels every level at the special points of the path, and draws both into one figure, phonon_irreps.pdf, next to the YAML file. No band.yaml and no plotting script of your own are needed; the figure at the top of the README and of the documentation start page is the one this command writes:

cd example/04-02_phonon_bandirrep/SrTiO3_Pm-3m
crystod-phonon --irreps -c 221_PPOSCAR_SrTiO3 --dim "4 4 4"
# -> phonon_irreps.yaml, phonon_irreps.pdf
_images/hero_phonon_irrep.png

The phonon_irreps.pdf of crystod-phonon --irreps -c 221_PPOSCAR_SrTiO3 --dim "4 4 4", converted to PNG for this page: cubic SrTiO3 (Pm-3m, 4x4x4 FORCE_SETS) along the seekpath path Γ-X-M-Γ-R-X|R-M. Every dot is a degenerate level at a special point, with its ISO-IR label; the imaginary R5- triplet (drawn at negative frequency) is red.#

Reading the figure#

  • One dot, one degenerate level. The label is the ISO-IR small irrep of the level with its dimension in parentheses, exactly the irrep_label of phonon_irreps.yaml (GM4-(3), R3-(2)); a one-dimensional irrep is written without its (1) (X3-, R2-). The dimensions at one point add up to the number of bands: 3 + 3 + 3 + 3 + 2 + 1 = 15 at R for the five atoms of SrTiO3.

  • Γ. The GM4-(3) at 0 THz is the acoustic triplet; the three other GM4-(3) (2.66, 4.71 and 15.31 THz) are the IR-active T1u modes and GM5-(3) at 7.35 THz is the silent T2u mode, as the * Gamma-point activity * block says (see 04-03. Phonon activity for the Raman/IR selection rules and the Mulliken names).

  • Red: the instability. A level below --threshold (default -0.1 THz) is imaginary; phonopy gives it as a negative frequency and it is drawn in red. Here it is R5-(3) at -1.09 THz, the rotation of the TiO6 octahedra that drives the cubic-to-tetragonal transition of SrTiO3 (R5- in the setting of this file, with Sr at the origin; R4+ with Ti at the origin, see the note on frames above). Which structures it can condense into is the subject of 04-11. Subgroups from imaginary modes: crystod-phonon --subgroup -c 221_PPOSCAR_SrTiO3 --dim 4 4 4 --qpoint R gives I4/mcm for the direction (0,0,a).

  • Close levels. Labels that would overlap are moved apart, each kept as close to its level as the room allows, and joined to its dot by a leader line: at the right-hand M, M2- (12.74 THz), M5-(2) (12.86 THz) and M1+ (13.13 THz). Two labels at one height are two levels: X2+ at 7.842 THz and X1+ at 7.850 THz are separate one-dimensional levels (two dots); one set holding two irreps would read X1+ + X2+ (the acoustic set GM1 + GM5(2) of P4mm BaTiO3 at 0 THz is such a set).

  • Every point once. A point is labeled at its last place on the path that is not a break: Γ at the middle vertex rather than at the left edge, X at its first vertex rather than at X|R, and M at the right edge, with its labels to the left. Where the path jumps (X|R), the two points get their labels on either side; two equivalent points with the same levels share one set (U|K of fcc Si).

  • The lines between the points are not labeled. The branches along the symmetry lines carry irreps of their own (DT1, DT5(2), … on Γ-X); --all-irreps lists them in phonon_irreps_all.yaml (the figure is the same with or without it), and a --band path with a vertex on the line labels them in the figure (below).

The terminal output

It is the --irreps run of the start of this section (same FORCE_SETS, same phonon_irreps.yaml); the * Band path * block of the terminal names the path drawn and the points that carry labels:

* Gamma-point activity *
GM4- [T1u] x4 (3 IR, 1 acoustic)
GM5- [T2u] x1 (silent)

* Band path *
  k path (seekpath): GM-X-M-GM-R-X | R-M  (306 q points)
  Labeled points: X, GM, R, M

* Output files *
  Phonon irreps written to: phonon_irreps.yaml
  Phonon dispersion with irrep labels written to: phonon_irreps.pdf

The run takes about 4.5 s for this example, one second of it for the bands and the figure. The YAML file is the result of the run: when the figure cannot be drawn (seekpath or the labeling failing on an unusual cell), the * Band path * block gives the reason in one NOTE: the dispersion figure was not drawn (...) line, * Output files * lists the YAML file alone, and the run still ends normally.

Options

The figure is a PDF named after the YAML file: phonon_irreps.pdf (SrTiO3_irreps.pdf with -o SrTiO3_irreps.yaml, phonon_irreps_all.pdf with --all-irreps). These options of --irreps shape it:

option

effect

--band "..."

a path of your own, in fractions of the primitive reciprocal basis; commas separate continuous pieces (default: the seekpath path of the primitive cell, as in --fatband and --lt)

--band-labels "..."

names of the --band vertices (default: their ISO-IR k-vector type, so a vertex on a line is named and labeled too)

--npoints N

q points per leg of the path (default 51)

--threshold F

frequency in THz below which a level is red (default -0.1, the threshold of --subgroup)

--nac

bands with the LO-TO splitting (needs BORN); see the note below

--readfc, --tolerance

as for the YAML file: FORCE_CONSTANTS in place of FORCE_SETS; the degeneracy tolerance of the labels

A malformed --band, a --band-labels count that does not fit it, or --npoints below 2 stops the run with one line before the survey.

A path of your own, here with a vertex in the middle of Γ-X, so that the branches of the line DT are labeled as well:

crystod-phonon --irreps -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" \
    --band "0 0 0  1/4 0 0  1/2 0 0, 1/2 1/2 0  1/2 1/2 1/2"
# -> phonon_irreps.yaml, phonon_irreps.pdf   (add -o band.yaml to write band.yaml, band.pdf and keep the seekpath figure)
* Band path *
  k path (--band): GM-DT-X | M-R  (153 q points)
  Labeled points: GM, DT, X, M, R

The vertex (1/4, 0, 0) is named DT by its ISO-IR k-vector type and gets the DT1, DT2, DT5(2) labels; at the jump X|M the X labels go to the left of the break and the M labels to the right.

Note

With --nac the bands show the LO-TO splitting near Γ, but the Γ labels are those of the TO modes (phonopy applies no q direction at Γ itself; see NAC and the BORN file): the LO branches end at Γ without labels, and the * Band path * block says so in a NOTE: line.

Text is set in Arial, or in DejaVu Sans where Arial is not installed; the figure is 16 cm x 12 cm.

04-03. Phonon activity (IR, Raman, mode charges)#

Example directory: example/04-03_phonon_activity (testsuite section 04-03); after pip install: crystod-example 04-03

The Γ phonons are the ones first-order infrared absorption and Raman scattering see. This section reads the spectroscopic side of a phonon calculation off them, for assigning measured spectra or checking a calculation against them: which modes are IR active, Raman active or silent, the Raman tensor of each line and, with Born effective charges, what each IR mode adds to the static dielectric constant. There is no mode flag of its own; the results are printed by the commands of the table.

See also

Theory: Spectroscopic activity of the Gamma phonons — the IR and Raman selection rules, the counting of the acoustic modes and the conventions of the Mulliken symbols; Mode effective charges and the static dielectric tensor — the formulas behind the dielectric table; Symmetry-allowed Raman tensors — how the tensors are built, and their comparison with Loudon’s tables.

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --irreps --dim 4 4 4 -c POSCAR

terminal * Gamma-point activity *: IR / Raman / silent / acoustic of every Γ set, with Mulliken symbols; the same in phonon_irreps.yaml

POSCAR alone, no forces

crystod-phonon --vibration -c POSCAR --qpoint GM

the same from the structure alone, plus the Wyckoff-orbit breakdown (section 04-08)

POSCAR + FORCE_SETS + BORN

crystod-phonon --irreps --dim 4 4 4 -c POSCAR --nac

mode effective charges, Δε of every Γ set, ε0, LST check

either of the first two

add --raman-tensor

Raman tensor of every Raman-active irrep; with --irreps also in phonon_irreps.yaml under raman_tensors (per irrep the tensors as printed and their coefficients)

Spectroscopic activity#

At Γ every degenerate set gets its spectroscopic activity, IR, Raman, both, silent or acoustic, and the terminal prints the summary in a * Gamma-point activity * block, one irrep per line:

crystod-phonon --irreps --dim 4 4 4 -c 221_PPOSCAR_SrTiO3

* Gamma-point activity *
GM4- [T1u] x4 (3 IR, 1 acoustic)
GM5- [T2u] x1 (silent)

* Band path *
  k path (seekpath): GM-X-M-GM-R-X | R-M  (306 q points)
  Labeled points: X, GM, R, M

* Output files *
  Phonon irreps written to: phonon_irreps.yaml
  Phonon dispersion with irrep labels written to: phonon_irreps.pdf

How to read it:

  • GM4- [T1u] is the ISO-IR label with its Mulliken symbol in brackets; x4 is the number of degenerate sets that carry it, followed by what they are: here one acoustic set and three IR-active optical sets. The activity_summary: line of phonon_irreps.yaml is the same summary without the brackets, and every Γ set of the file has its mulliken: and activity: lines (section 04-02).

  • IR active: the mode carries an electric dipole. Raman active: its irrep occurs in the representation of the polarizability tensor. silent: neither. acoustic: the three rigid translations, reported as acoustic rather than IR although their irrep is that of the vector representation.

  • “Active” means allowed by symmetry: the intensity of an allowed line can still be too weak to observe.

  • unknown marks a set whose characters are not those of a representation (too small a --tolerance split a degenerate set; raise it), ? a set that could not be labelled.

  • A set can hold more than one irrep (the acoustic set of a polar crystal, or optical irreps within --tolerance of each other); its activity: line then lists every kind that occurs ([IR, silent, acoustic]), and the summary does not depend on the tolerance.

  • The Mulliken symbols are the ones phonopy itself prints. B1/B2 (and B1/B2/B3) follow phonopy’s axis convention, which can differ from other tables, and refer to the axes of the standard setting even for a cell given in another setting (Pbnm instead of Pnma, for instance).

Mode effective charges and the dielectric tensor (--irreps --nac)#

With --nac, the Born effective charges and the electronic dielectric tensor of BORN also give the polar response of the Γ phonons (the input is that of example/04-04_phonon_fatband/ScF3_Pm-3m):

crystod-phonon --irreps --dim 4 4 4 -c 221_PPOSCAR_ScF3 --nac
NAC: Born effective charges and dielectric tensor read from BORN.

* Gamma-point activity *
GM4- [T1u] x3 (2 IR, 1 acoustic)
GM5- [T2u] x1 (silent)

* Gamma-point dielectric response (Born effective charges from BORN) *
  set  irrep          freq (THz)  activity             |Z~| (e/sqrt(amu))  Delta eps (xx, yy, zz)
    1  GM4-               0.0000  acoustic                         0.0000  -
    2  GM5-               4.2122  silent                           0.0000    0.0000    0.0000    0.0000
    3  GM4-               6.2446  IR                               0.7313    2.9993    2.9993    2.9993
    4  GM4-              13.9231  IR                               1.4304    2.3086    2.3086    2.3086
  eps_inf (diag):          2.2839    2.2839    2.2839
  sum Delta eps (diag):    5.3079    5.3079    5.3079
  eps_0 (diag):            7.5919    7.5919    7.5919
  sum_kappa Z*_kappa: max |deviation| = 1.00e-08 (acoustic sum rule)
  LST check: prod (nu_LO/nu_TO)^2 = 3.3240, eps_0/eps_inf = 3.3240 (q -> 0 along [1 0 0])

* Band path *
  k path (seekpath): GM-X-M-GM-R-X | R-M  (306 q points)
  Labeled points: X, GM, R, M
  NOTE: at GM the labels are those of the TO modes (phonopy applies no q direction at GM itself); the LO branches end there without labels

* Output files *
  Phonon irreps written to: phonon_irreps.yaml
  Phonon dispersion with irrep labels written to: phonon_irreps.pdf

How to read it (one row per degenerate set, then the totals):

  • |Z~| (e/sqrt(amu)): the size of the mode effective charge of the set, the dipole its displacement carries (the root of the sum of its squares over the bands of the set, which does not depend on how the degenerate eigenvectors were chosen).

  • Delta eps (xx, yy, zz): the contribution of the set to the static dielectric tensor (its diagonal); the acoustic bands are left out (-).

  • eps_inf is the electronic tensor of BORN, and eps_0 = eps_inf + sum Delta eps.

  • The acoustic sum rule line: the Born charges of all atoms of the cell add up to zero; the line gives the largest element of that sum, a check of the BORN file.

  • The Lyddane-Sachs-Teller check compares the product over the optical bands of (nu_LO / nu_TO)^2 with eps_0 / eps_inf along the same direction (q -> 0 along [1 0 0], reduced reciprocal coordinates). The two numbers come out of independent calculations, and their agreement checks the charges, the frequencies and the units together.

  • An imaginary optical mode with a dipole (a polar soft mode) has a negative Delta eps; the table then adds the line note: N imaginary optical band(s) (bands ...) contribute with negative sign; eps_0 is not a static dielectric constant of an unstable structure.

The entries in phonon_irreps.yaml

phonon_irreps.yaml gets the two tensors in its header and two lines per Γ set:

nac: true
dielectric_electronic: [[2.283939, 0.000000, 0.000000], [0.000000, 2.283939, 0.000000], [0.000000, 0.000000, 2.283939]]
dielectric_static: [[7.591860, 0.000000, 0.000000], [0.000000, 7.591860, 0.000000], [0.000000, 0.000000, 7.591860]]
...
  - band_indices: [10, 11, 12]
    irrep_label: ['GM4-(3)']
    mulliken: T1u
    frequency:  13.9231282991
    activity: [IR]
    mode_effective_charge: [[0.000000, -0.011905, -0.825778], [0.000000, -0.825778, 0.011905], [-0.825864, 0.000000, 0.000000]]
    dielectric_contribution: [2.308629, 2.308629, 2.308629]

mode_effective_charge holds one Cartesian vector per band (its direction inside a degenerate set follows phonopy’s choice of eigenvectors); dielectric_contribution is the diagonal of Delta eps.

Raman tensors (--raman-tensor)#

--raman-tensor adds the symmetry-allowed form of the Raman tensor of every Raman-active irrep among the Γ phonons. It works with --irreps and, from the structure alone, with --vibration --qpoint GM:

crystod-phonon --irreps --dim 4 4 4 -c 227_PPOSCAR_Si --raman-tensor

* Gamma-point activity *
GM4- [T1u] x1 (acoustic)
GM5+ [T2g] x1 (Raman)

* Raman tensors (Cartesian axes of the input cell) *
  GM5+ [T2g] (3 tensors):  [[0, 0, 0], [0, 0, a], [0, a, 0]]   [[0, 0, a], [0, 0, 0], [a, 0, 0]]   [[0, a, 0], [a, 0, 0], [0, 0, 0]]

* Band path *
  k path (seekpath): GM-X-U | K-GM-L-W-X  (306 q points)
  Labeled points: U|K, GM, L, W, X

* Output files *
  Phonon irreps written to: phonon_irreps.yaml
  Phonon dispersion with irrep labels written to: phonon_irreps.pdf

How to read it:

  • The tensors are written in the Cartesian axes of the input cell (the axes of the POSCAR lattice vectors), so that they can be compared with a polarization geometry in the laboratory frame of that cell; a cell rotated in space gives the rotated tensors. The Mulliken symbol in brackets refers to the axes of the standard setting, so for a cell in a non-standard setting (Pbnm instead of Pnma) the tensor of B1g need not be xy.

  • Each tensor of an irrep has its own free constant a, with exact entries where possible (-2*a, sqrt(3)/2*a). A complex irrep is listed together with its conjugate (GM2GM3).

  • For an irrep that occurs once in the symmetric square the tensors are its partners (the cubic Eg pair diag(a, a, -2a) and diag(a, -a, 0)). A one-dimensional irrep that occurs twice (A1 of 4mm and 6mm) prints its two basis tensors, and a mode’s tensor is a combination of them (diag(a, a, b)).

  • An irrep of dimension two that occurs twice (E of 3m, -3m and 32, and the complex E pair of 3 and -3) is printed per partner instead (2 partners, constants a, b), with constants shared across the partners, as in the tables; the two partners of a mode of the irrep have these forms with the same a and b:

The Eg tensors of Bi
crystod-phonon --vibration -c 166_PPOSCAR_Bi --qpoint GM --raman-tensor
...
* Raman tensors (Cartesian axes of the input cell) *
  GM1+ [A1g] (2 tensors):  [[a, 0, 0], [0, a, 0], [0, 0, 0]]   [[0, 0, 0], [0, 0, 0], [0, 0, a]]
  GM3+ [Eg] (2 partners, constants a, b):  [[a, 0, 0], [0, -a, b], [0, b, 0]]   [[0, a, b], [a, 0, 0], [b, 0, 0]]
Limits

Limits:

  • The activities and tensors are symmetry selection rules for first-order (one-phonon) IR absorption and Raman scattering at Γ: they say which lines can appear and in which polarizations, not their intensities (the dielectric table gives the IR oscillator strengths from the Born charges; Raman intensities need the polarizability derivatives).

  • The point group is that of the atomic structure; magnetic order is not taken into account.

  • --raman-tensor takes Γ only (--vibration at another q point stops with an error).

From Python

Python API. The MCP tool is crystod_phonon_activity (the Γ activity table, the Wyckoff-orbit breakdown and the Raman tensors of a POSCAR, without force constants). gamma_mode_activities prints nothing on stdout: the primitive-cell note of the commands is left out, so it cannot reach the protocol stream of the MCP server (see quiet in What is written):

from crystod import phonon
from crystod.vasp_io import read_poscar_cell

cell = read_poscar_cell("221_PPOSCAR_SrTiO3")    # or a phonopy object with forces
phonon.gamma_mode_activities(cell)               # list of Activity records, one per mode space or set
phonon.gamma_raman_tensors(read_poscar_cell("227_PPOSCAR_Si"))   # list of RamanTensors
phonon.mulliken_symbols(cell)                    # {'GM1+': 'A1g', ..., 'GM4-': 'T1u', ...}

import phonopy                                   # example/04-04_phonon_fatband/ScF3_Pm-3m
ph = phonopy.load(unitcell_filename="221_PPOSCAR_ScF3", supercell_matrix=[4, 4, 4],
                  force_sets_filename="FORCE_SETS", born_filename="BORN", is_nac=True)
phonon.dielectric_response(ph).eps_static        # DielectricResponse; diagonal 7.5919
phonon.mode_effective_charges(ph)                # (n_bands, 3) array at Gamma, e/sqrt(amu); here (12, 3)

04-04. Phonon fatbands (--fatband)#

Example directory: example/04-04_phonon_fatband (testsuite section 04-04); after pip install: crystod-example 04-04

Which element carries which phonon branch?

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --fatband -c POSCAR --dim 4 4 4

fatband_<element>.pdf, one per element

the same + BORN

add --nac

fatband_nac_<element>.pdf, with the LO/TO splitting

the same

add --element F

the PDF of that element only

Plot phonon fatbands colored by the element-projected phonon density (sum of squared eigenvector components over each element’s atoms), directly from POSCAR + FORCE_SETS (or FORCE_CONSTANTS with --readfc):

cd example/04-04_phonon_fatband/ScF3_Pm-3m
crystod-phonon --fatband -c 221_PPOSCAR_ScF3 --dim 4 4 4
# -> fatband_Sc.pdf, fatband_F.pdf
_images/fatband_F.png

fatband_F.pdf for ScF3 (4x4x4 FORCE_SETS): the F-projected weight (shading) concentrates on the soft rotational branches around R and M and on the high-frequency stretching bands, while the Sc-dominated mid-frequency bands stay unshaded (they appear in fatband_Sc.pdf instead).#

The space group is detected, the high-symmetry k-path is generated automatically with seekpath, and the band structure is computed with eigenvectors and band connection through the phonopy API — no band.yaml needed. One PDF per element is written, in the VESTA default element colors, with dot sizes proportional to the projected weight.

Plotting style based on script/phonon_fatband.py by Hiroki Koiso.

Options

Options:

option

effect

--element F

restricts the output to one element

--band / --band-labels

a manual k-path instead of seekpath

--npoints

the q-point density per path leg (default 51)

--projection-direction "0 0 1"

projects the displacements onto a direction in reduced coordinates before squaring

LO/TO splitting (--nac)#

crystod-phonon --fatband -c 221_PPOSCAR_ScF3 --dim 4 4 4 --nac
# -> fatband_nac_Sc.pdf, fatband_nac_F.pdf
_images/fatband_nac_F.png

fatband_nac_F.pdf — the same F-projected fatband with the non-analytical term correction (a BORN file in the current directory). The LO/TO splitting lifts the highest F-dominated branch at Gamma from 13.9 to 20.5 THz, while the zone-boundary soft modes at R and M are untouched: the correction acts only in the long-wavelength limit. The plot title carries an “(NAC)” tag, and the file names get a nac_ prefix so corrected and uncorrected fatbands coexist.#

04-05. Longitudinal/transverse bands (--lt)#

Example directory: example/04-05_phonon_lt (testsuite section 04-05); after pip install: crystod-example 04-05

Which branch is longitudinal and which transverse?

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --lt -c POSCAR --dim 4 4 4

phonon_band_LT.pdf

the same + BORN

add --nac

phonon_band_LT_nac.pdf, with the split-off LO branches

Plot the phonon band structure colored by the longitudinal/transverse character of each mode (red = longitudinal, blue = transverse, white = mixed or Gamma):

cd example/04-05_phonon_lt/ScF3_Pm-3m
crystod-phonon --lt -c 221_PPOSCAR_ScF3 --dim 4 4 4
crystod-phonon --lt -c 221_PPOSCAR_ScF3 --dim 4 4 4 --nac
# -> phonon_band_LT.pdf   /   phonon_band_LT_nac.pdf
_images/phonon_band_LT.png

phonon_band_LT.pdf for ScF3: red = longitudinal, blue = transverse, white = mixed. Along GM-X the acoustic set splits visibly into one red L branch and two blue T branches; the flat band near 14 THz is purely transverse throughout the zone.#

The longitudinal character of a mode is sqrt(sum_atoms |q_hat . e_atom|^2), the norm of the eigenvector projection onto the propagation direction, which is valid along any path direction including diagonal segments such as GM-R. With --nac the split-off LO branches show up as purely red. Based on script/LT_phonon_band.py maintained by Hiroki Koiso, after Qijing Zheng.

04-06. Phonon eigenvectors (--vector)#

Example directory: example/04-06_phonon_vector (testsuite section 04-06); after pip install: crystod-example 04-06

Which way do the atoms move in a phonon mode?

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --vector --dim 4 4 4 -c POSCAR --qpoint GM

terminal mode table, phonon_modes_<formula>_<qlabel>.txt, one .vesta file per mode

the same

add --mode 4 (or --mode 4 5 6)

one .vesta file with that mode (the modes summed)

the same

add --conventional

the pattern in the conventional cell

Diagonalize the dynamical matrix directly at the selected q point via the phonopy API, list the modes with their frequencies and irrep labels, and export the selected eigenvectors as .vesta files with per-atom displacement arrows:

cd example/04-06_phonon_vector/Si_Fd-3m
crystod-phonon --vector --dim "4 4 4" -c 227_PPOSCAR_Si --qpoint GM

* Structure *
  Space group: Fd-3m (#227)

* Available high-symmetry q-points *
  GM       [0.0, 0.0, 0.0]
  L        [0.5, 0.5, 0.5]
  X        [0.5, 0.0, 0.5]
  W        [0.5, 0.25, 0.75]

* Selected Q point *
  Selected q-point: GM = [0.0, 0.0, 0.0]

* Phonon modes at q = GM *
 Mode    Freq (THz)  Irrep
----------------------------------------
    1        0.0000  GM4-(3)
    2        0.0000  GM4-(3)
    3        0.0000  GM4-(3)
    4       14.9571  GM5+(3)
    5       14.9571  GM5+(3)
    6       14.9571  GM5+(3)

* Displacement patterns *
  No --mode given; exporting all 6 modes as individual VESTA files.
  Commensurate supercell for visualization: 1x1x1
  + mode 1: GM4-(3), 0.0000 THz
  ...
  + mode 6: GM5+(3), 14.9571 THz
  Arrows are scaled so the largest displacement is 1.5 A; adjust arrow size in VESTA via Edit > Vectors or Properties > Vectors if needed.

* Output files *
  Mode table written to: phonon_modes_Si_GM.txt
  Mode 1 written to: POSCAR_Si_GM_mode1_GM4-.vesta
  ...
  Mode 6 written to: POSCAR_Si_GM_mode6_GM5+.vesta

The mode table of the * Phonon modes at q = ... * block is also saved as phonon_modes_<formula>_<qlabel>.txt.

Degenerate modes are exported as symmetry-adapted eigenvectors, the same ones as in --modulation: the three degenerate GM5+ optical modes of Si point exactly along the cubic axes instead of the arbitrary tilted combinations a plain eigensolver returns (how they are built: Symmetry-adapted eigenvectors of degenerate phonon levels).

Selecting modes and cells (--mode, --conventional)

Select the modes with --mode (1-based, as in the table above); several mode numbers are summed into one displacement pattern:

# one optical GM5+ mode
crystod-phonon --vector --dim "4 4 4" -c 227_PPOSCAR_Si --qpoint GM --mode 4

# the whole triplet, summed
crystod-phonon --vector --dim "4 4 4" -c 227_PPOSCAR_Si --qpoint GM --mode 4 5 6

# X point: the commensurate supercell (2x1x2) and Bloch phases are applied automatically
# (--readfc: the development tree keeps a FORCE_CONSTANTS here, which is
#  not in the pip package; a crystod-example copy has FORCE_SETS only, so write
#  one as in section 04-02 or drop --readfc)
crystod-phonon --vector --dim "4 4 4" -c 227_PPOSCAR_Si --qpoint X --mode 1 --readfc

# conventional cell (POSCAR_Si_GM_mode4+5+6_GM5+_conv.vesta)
crystod-phonon --vector --dim "4 4 4" -c 227_PPOSCAR_Si --qpoint GM --mode 4 5 6 --conventional
The VESTA files

Files are auto-named POSCAR_<formula>_<qlabel>_mode<N>_<irrep>.vesta (mode numbers zero-padded so ls lists them in order) and open directly in VESTA, showing the equilibrium structure with red arrows for the real part of the mass-weighted eigenvector displacement, rescaled so that the largest displacement equals --amplitude (default 1.5 Angstrom).

The q point (--qpoint)

--qpoint accepts a high-symmetry label (GM, X, L, …) or three primitive reciprocal coordinates (fractions allowed). For a q point that is not special, the file name carries its ISO-IR k-vector type (SM, DT, …); --keep-q-coords names it by coordinates instead (see section 04-07), so a scan along one symmetry line does not overwrite itself.

04-07. Phonon modulation (--modulation)#

Example directory: example/04-07_modulation (testsuite section 04-07); after pip install: crystod-example 04-07

Generate modulated (displaced) structures from symmetry-adapted phonon modes: choose a q point and the modes, and --modulation writes the displaced structure, prints its space group and names the file after it.

See also

Theory: Phonon modulation: modes, amplitudes and phases — the displacement that is frozen in, how the partners, signs and phases of a degenerate level are fixed, and why the space group is to be read at 1e-5.

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --modulation -c POSCAR --qpoint 0.5 0.5 0.5

terminal: the mode table (frequency, irrep, degeneracy) and the star of q, to choose the modes; the same report in modulation_{formula}_{q} (modulation_ScF3_R)

the same

add --mode 1 2 3 --amplitude 0.3

MPOSCAR_{q}_{mode}_{irrep}_{subgroup}, and its space group on the terminal; the whole report (mode table, star of q, symmetry) in modulation_{formula}_{tags} next to it, {tags} = the MPOSCAR name without MPOSCAR_ (modulation_ScF3_R_mode1+2+3_R4+_R-3c)

phonopy_params.yaml

crystod-phonon --modulation --yaml phonopy_params.yaml --qpoint ... --mode ...

the same structure

several q points (arms of a star)

--qpoint1 ... --mode1 ... --amplitude1 ..., --qpoint2 ...

one structure with all the terms

a scan along a line

add --keep-q-coords

the files named by the q coordinates

any of these

add --no-files

the report on the terminal only (the MPOSCAR is still written)

The inputs are the ones you already have — the unit cell and FORCE_SETS (or FORCE_CONSTANTS with --readfc); a phonopy_params.yaml works too, but none has to be produced first:

cd example/04-07_modulation/ScF3_Pm-3m
crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3
crystod-phonon --modulation --yaml phonopy_params.yaml --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3
The q point, --yaml and -c

--qpoint takes three primitive reciprocal coordinates or a special-point label, resolved as in --vector and --subgroup (--qpoint R is --qpoint 0.5 0.5 0.5 here; the numbered --qpointN take the same forms). The two write the same structure, byte for byte. FORCE_SETS is looked for in the current directory first and then next to the -c file, so -c ../221_PPOSCAR_ScF3 works from a scratch directory. --yaml and -c are alternatives, not a pair:

crystod-phonon: error: --modulation takes either --yaml or -c (with FORCE_SETS/FORCE_CONSTANTS), not both.

Where the supercell comes from#

--modulation is the one mode that does not need --dim — --irreps/--fatband/--lt/--vector/--subgroup still do. It resolves the supercell of the force calculation in this order, and always prints what it used, so an inferred supercell is never silent:

source

when

1

--dim "4 4 4"

given explicitly; wins over the rest

2

the supercell_matrix of phonopy_disp.yaml (or phonopy_params.yaml)

that file sits in the current directory

3

the atom count of FORCE_SETS, or of FORCE_CONSTANTS with --readfc

nothing else says

Note

The -c route takes the primitive cell the way every other crystod-phonon mode does — primitive_matrix="auto" — while a phonopy_params.yaml carries whatever primitive matrix it was built with. For a primitive input cell (any P lattice) the two coincide, which is why the commands above agree byte for byte; hand -c a centred conventional cell and the -c route works in the smaller primitive cell instead. The printed Primitive cell: line always says which one you got.

What the run prints
crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3
crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --readfc --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3
# --readfc reads FORCE_CONSTANTS (the shipped example directory carries FORCE_SETS)

* Phonon source *
  Supercell 4x4x4 read from phonopy_disp.yaml. Primitive cell: 4 atoms of the 4-atom input cell (primitive_matrix auto).

* Selected Q point *
  Loading '221_PPOSCAR_ScF3 + FORCE_SETS' at q = [0.5, 0.5, 0.5]...

* Phonon source *
  Supercell 4x4x4 inferred from the 256 atoms of FORCE_SETS; pass --dim if that is not the supercell of your force calculation. Primitive cell: 4 atoms of the 4-atom input cell (primitive_matrix auto).

Case 3 counts atoms, so it fixes only the product n1*n2*n3; the shape is picked to respect the metric of the cell (|a| = |b| forces n1 = n2). It is a guess, the message says so, and --dim overrides it. For the ScF3 example every route in the table — and --yaml — writes the same file, byte for byte.

A supercell that is not diagonal

A supercell that is not diagonal is refused rather than guessed at — any diagonal guess with the right atom count loads without complaint, so the error would otherwise be silent:

ERROR: 'phonopy_disp.yaml' states a supercell_matrix that is not a positive diagonal matrix; this workflow supports diagonal supercells only. Inferring one instead would silently give the wrong answer, since any guess with the right atom count loads without complaint. Use --yaml phonopy_params.yaml, or give the diagonal supercell with --dim "n n n".

Choosing the modes#

When --mode is omitted, only the mode table and the star of q are printed, so the modes at a q point can be inspected before choosing:

crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --qpoint 0.5 0.5 0.5

* Phonon source *
  Supercell 4x4x4 read from phonopy_disp.yaml. Primitive cell: 4 atoms of the 4-atom input cell (primitive_matrix auto).

* Selected Q point *
  Loading '221_PPOSCAR_ScF3 + FORCE_SETS' at q = [0.5, 0.5, 0.5]...

* Phonon modes at q = [0.5 0.5 0.5] *
 Mode    Freq (THz)         Irrep   Degeneracy
--------------------------------------------------
    1        1.4169        R4+(3)            3
    2        1.4169        R4+(3)            3
    3        1.4169        R4+(3)            3
    4        7.1689        R5+(3)            3
    5        7.1689        R5+(3)            3
    6        7.1689        R5+(3)            3
    7       11.3334        R4-(3)            3
    8       11.3334        R4-(3)            3
    9       11.3334        R4-(3)            3
   10       13.6922        R3+(2)            2
   11       13.6922        R3+(2)            2
   12       18.7661        R1+(1)            1

* Star of q (arms related by the space-group rotations) *
  |G| = 48, |G_k| = 48, |star of k| = 1
  arm 1: k = [+0.5, +0.5, +0.5]

No --mode given. Choose mode number(s) from the table above and rerun with
--mode (and optionally --amplitude) to generate a modulated structure.

* Output files *
  Report written to: modulation_ScF3_R (this output)

Then apply the chosen modes:

crystod-phonon --modulation -c 221_PPOSCAR_ScF3 \
  --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3
# -> MPOSCAR_R_mode1+2+3_R4+_R-3c, and its report modulation_ScF3_R_mode1+2+3_R4+_R-3c

The soft octahedral-rotation triplet of ScF3 is the lowest R4+ set, modes 1-3; applying all three with equal amplitudes condenses the (a,a,a) direction, and the space group of the modulated structure is detected and printed as R-3c — matching the --parent Pm-3m --irrep R4+ isotropy table of crystod-group (section 02-10). The output name follows MPOSCAR_{q}_{mode}_{irrep}_{subgroup} unless --output is given, and a single --amplitude applies to all selected modes.

Note

The space group is reported at a 0.1 Å tolerance by default, which is what makes a nearly-symmetric distortion read as the symmetric one. Pass --tolerance 1e-5 to classify the structure at the tolerance the order-parameter direction implies: --mode 1 2 3 --amplitude 0.3 0.15 0.075 is the direction (a,b,c) and prints P-1 at 1e-5, but C2/c at the default, because the smallest of the three displacements is below 0.1 Å. The 1e-5 result is the one to report. --tolerance also sets the tolerance of the mode construction itself (default 1e-5).

Several q points (--qpoint1, --qpoint2, …)

Different q points can be combined with numbered argument sets (--qpoint1/--mode1/--amplitude1, --qpoint2/--mode2/--amplitude2, …):

crystod-phonon --modulation --yaml phonopy_params.yaml \
  --qpoint1 0 0.5 0.5 --mode1 1 --amplitude1 0.3 \
  --qpoint2 0.5 0 0.5 --mode2 1 --amplitude2 0.3 \
  --qpoint3 0.5 0.5 0 --mode3 1 --amplitude3 0.3 \
  --output POSCAR_multi_q_arms

The star of q is displayed for each selected q point, which is what makes combining arms of the same star (the three X or M arms of a perovskite) straightforward. The X point of body-centred tetragonal Sr3Ti2O7 has two arms, (0,0,1/2) and (1/2,1/2,0); its lowest mode, X3-, frozen into both with equal amplitudes is the direction X3-(a;a):

cd example/04-07_modulation/Sr3Ti2O7_I4mmm
# a crystod-example copy has no phonopy_params.yaml (the file is
# not in the pip package): make it from the unit cell and FORCE_SETS with
# phonopy 4 first
phonopy-init -d -c 139_PPOSCAR_Sr3Ti2O7 --dim 4 4 4
phonopy phonopy_disp.yaml --sp
crystod-phonon --modulation --yaml phonopy_params.yaml \
  --qpoint1 0 0 0.5 --mode1 1 --amplitude1 0.3 \
  --qpoint2 0.5 0.5 0 --mode2 1 --amplitude2 0.3
...

* Modulation *
  Term 1: q = [0.0, 0.0, 0.5], modes = [1], amplitudes (A) = [0.3]
  Term 2: q = [0.5, 0.5, 0.0], modes = [1], amplitudes (A) = [0.3]

* Symmetry of the generated structure *
  Space group: P4_2/mnm (#136)
  Hall symbol: -P 4n 2n

* Output files *
  Modulated structure written to: MPOSCAR_X_mode1_X3-_X_mode1_X3-_P4_2mnm
  Report written to: modulation_Sr3Ti2O7_X_mode1_X3-_X_mode1_X3-_P4_2mnm (this output)

The blocks before * Modulation * are those of a single q point, repeated for each term: * Selected Q point *, * Phonon modes at q = ... * and * Star of q ... *.

One arm alone gives X3-(0;a), Cmcm, and unequal amplitudes X3-(a;b), Pnnm (check it with --tolerance 1e-5: at the default tolerance, amplitudes as different as 0.3 and 0.16 still read as P4_2/mnm) — the rows of crystod-group --parent I4/mmm --irrep X3-. --qpoint2 -0.5 0.5 0, the same point written with another reciprocal lattice vector, writes the same structure.

What is frozen in#

--modulation freezes in the harmonic eigen-displacement of the chosen modes: phonopy’s eigenvector divided by the square root of the atomic mass, with its Bloch phase, so heavy atoms move less than light ones. For a non-degenerate mode at a time-reversal-invariant q it is, up to its sign, the pattern phonopy’s own MODULATION freezes in (the test suite compares the two, section 04-07). In practice:

  • --amplitude (Å) is the norm of the displacement of one primitive cell (default 0.3 Å). At a time-reversal-invariant q (2q a reciprocal lattice vector: Γ and the zone-boundary points such as X, M, R, N) every primitive cell of the supercell is displaced by a pattern of norm exactly A; at any other q the real displacement varies from cell to cell along the modulation.

  • q may be written any way. q + G is the same modulation as q: (0.5, 0.5, 0) and (-0.5, 0.5, 0) of Sr3Ti2O7 write the same structure. Two different arms of the star are two different modulations (domains related by a rotation of the parent); the printed star lists them.

  • One --mode number of a degenerate level is one partner, an order-parameter direction of the irrep, and equal amplitudes give the combined directions (--mode 1 2 3 of the R4+ triplet of ScF3 is (a,a,a), R-3c; --mode 1, 2 and 3 alone rotate the octahedra about a, b and c). Which subgroup --mode N gives does not depend on the origin, the orientation or the lattice basis of the input cell; --subgroup --modulate generates every direction.

  • At any other q the global phase is a convention: a structure frozen there is one member of a family related by a shift of the modulation along the lattice, and its space group is the one of that member.

  • The cell is used as it is. The primitive cell of the phonopy object keeps its origin, orientation and lattice basis in the output (the atoms are only grouped by species, as a POSCAR needs). That cell must be primitive (primitive_matrix="auto", which -c uses); a phonopy_params.yaml that stores the conventional cell of a centred lattice as its primitive cell is refused with a message saying so. A structure that is symmetric only within a loose --tolerance is refused as well: symmetrize it before the force calculation.

  • q must be commensurate. A q that no supercell of at most 12 cells per axis holds (0.15, for instance) is refused before any mode is computed, and the message names the smallest supercell that holds it (20x1x1 for 0.15 = 3/20); give q as fractions with a denominator of at most 12 (1/7). The mode table at such a q can still be previewed without --mode. --vibration makes the same check.

The displacement formula and the full conventions (signs, the order of the partners, complex irreps) are in The frozen-in displacement of a phonon mode.

Scanning a symmetry line (--keep-q-coords)#

A q point that is not a special point is named after its ISO-IR k-vector type, so a scan along one line would keep overwriting the same file. --keep-q-coords names the output by coordinates instead:

crystod-phonon --modulation --qpoint 0.25 0.25 0 --mode 1 --amplitude 0.2
crystod-phonon --modulation --qpoint 0.25 0.25 0 --mode 1 --amplitude 0.2 --keep-q-coords
  Modulated structure written to: MPOSCAR_SM_mode1_SM3_Pmma               # default
  Modulated structure written to: MPOSCAR_q_0.25_0.25_0_mode1_SM3_Pmma    # --keep-q-coords

The flag works the same way in --vector mode.

04-08. Vibration bases (--vibration)#

Example directory: example/04-08_vibration (testsuite section 04-08); after pip install: crystod-example 04-08

--vibration lists the symmetry-adapted displacement patterns of a structure at one q point, grouped by irrep, from the crystal symmetry alone: no force data are needed. It answers which irreps the vibrations at q span before any phonon calculation (the counts of the Bilbao SAM program at Γ), and it writes any one pattern as a displaced structure.

See also

Theory: Symmetry-only vibration patterns — how the mode spaces are obtained, and how the components, their order and their phases are fixed.

Input

Command

Output

POSCAR alone

crystod-phonon --vibration -c POSCAR --qpoint R

terminal: the special q points and the mode spaces at q (irrep, dimension, component numbers); the same report in vibration_{formula}_{q} (vibration_ScF3_R)

the same

add --mode-index 3 --component-index 1

that component as a displaced structure in the commensurate supercell, VPOSCAR_{formula}_{q}_space{N}[_comp{M}] (VPOSCAR_ScF3_R_space3_comp1; _comp{M} for a space of dimension 2 or more), or the --output path; the report in vibration_{formula}_{q}_space{N}[_comp{M}]

the same

--qpoint GM (and --raman-tensor)

also the Mulliken symbols, the activities, the Γ activity summary and the Wyckoff-orbit breakdown (and the Raman tensors)

the same

--list-qpoints

the list of special q points only (terminal only, no file)

any --qpoint run

add --no-files

the report on the terminal only

crystod-phonon --vibration -c 221_PPOSCAR_ScF3 --qpoint R
 ### Inputed cell was converted into primitive cell. ###

* Q points (primitive) *
  GM       (0, 0, 0)
  R        (1/2, 1/2, 1/2)
  M        (1/2, 1/2, 0)
  X        (0, 1/2, 0)

* Selected Q point *
  R        (1/2, 1/2, 1/2)

* Irrep-grouped vibration spaces *
  Mode Space  1: irrep = R1+(1), dimension = 1, component numbers = 1..1
  Mode Space  2: irrep = R3+(2), dimension = 2, component numbers = 1..2
  Mode Space  3: irrep = R4+(3), dimension = 3, component numbers = 1..3
  Mode Space  4: irrep = R4-(3), dimension = 3, component numbers = 1..3
  Mode Space  5: irrep = R5+(3), dimension = 3, component numbers = 1..3

How to read it:

  • * Q points (primitive) * lists the ISO-IR special points of the space group, named as the irrep labels at them are named, as fractions of the reciprocal basis vectors of the primitive cell the mode spaces use (1/3, -1/2; a coordinate that is no simple fraction is written with four decimals). They are the points --irreps surveys (the special_points: of phonon_irreps.yaml, which may list them in another order), in the order of seekpath’s special-point table (GM, R, M, X for Pm-3m; GM, A, K, H, M, L for P6_3mc). --list-qpoints prints only this block and stops.

  • * Selected Q point * is the point of --qpoint.

  • Each Mode Space line is one copy of an irrep: its ISO-IR label with the dimension in parentheses, and the numbers of its components (the values --component-index takes). The 12 displacement degrees of freedom at R group into 1 + 2 + 3 + 3 + 3, the same irreps as the --modulation mode table of section 04-07.

  • At Γ the lines also carry the Mulliken symbol and the activity, and two more blocks follow, three with --raman-tensor (Spectroscopic activity at Γ).

Select one symmetry-allowed mode component, build the commensurate supercell, and export a displaced structure:

crystod-phonon --vibration -c 221_PPOSCAR_ScF3 --qpoint R \
  --mode-index 3 --component-index 1 --output POSCAR_vibration
Options
  • --qpoint accepts either one of the listed names (any case; GAMMA, G and Γ also mean GM, and seekpath names such as H_2 are accepted for their points) or three primitive reciprocal coordinates (fractions such as 1/3 allowed). Coordinates are named after the listed point they are, or the arm of its star they lie on, else after their ISO-IR k-vector type (T for a point on the R-M line of a cubic crystal, PA for the -k partner of P).

  • --mode-index adds a * Selected basis vector * block with the selected space and component, the commensurate supercell and the first displacement vectors.

  • --export-npz mode_data.npz saves positions, displacement vectors, symbols, and lattice for notebook-side visualization.

  • --amplitude takes one value (default 0.3 Å), since one component is written.

  • The supercell is the smallest one commensurate with q, with at most 12 cells per axis as in --modulation: with --mode-index, a q that no such supercell holds (0.15 0 0) is refused, and the message names the smallest supercell that holds it (20x1x1); the mode spaces at such a q are still listed without --mode-index.

  • The POSCAR lists the atoms grouped by species (Sc F / 8 24), in the order the species first appear.

What is written#

The component is frozen in as u_j(R) = A Re[ w_j exp(2 pi i q.R) ], with A the --amplitude and w a unit-norm symmetry-adapted partner of the selected mode space. There are no force constants and no masses here: w is a displacement pattern that transforms as its irrep, not a normal mode. In practice:

  • At a time-reversal-invariant q (Γ and zone-boundary points such as X, M, R, N, Y) every component is real, the displacement of each primitive cell has the norm A, and a single component freezes into an isotropy subgroup of its irrep (all six X3- spaces of Sr3Ti2O7 give Cmcm; the three R4+ components of ScF3 are the I4/mcm rotations about a, b and c, in that order).

  • Pick the mode space by its label in the listing of the q you use: the mode-space numbers follow the order in which the irreps are listed at the q given, and that order can differ between the spellings q, q + G and -q (SrTiO3 I4/mcm lists M3+ first at 0.5 0.5 -0.5 and M1+ first at 1.5 0.5 -0.5); the k-th mode space carrying a label writes the same file for every spelling.

  • An irrep that occurs several times has one mode space per occurrence. Without force constants nothing selects a combination of them, and any combination freezes into the same subgroup.

  • At any other q the component is a complex Bloch wave whose global phase is a convention, as in --modulation, and the space group of the structure depends on it.

  • The cell is the spglib primitive cell of the input (the Inputed cell was converted into primitive cell note), which is also the cell the supercell is built from; the q coordinates and the Bloch factors refer to it. The commands print that note on stdout; in Python, phonon.SymmetryOnlyVibrations(cell, quiet=True) runs the same analysis without it (for library use, and for the MCP server, whose stdout is its protocol stream).

The full conventions (the partners and their signs, the order of repeated irreps, complex pairs, the labels of shifted inputs) are in Conventions of the symmetry-only vibration patterns.

Spectroscopic activity at Γ#

Example directory: example/04-03_phonon_activity (testsuite section 04-03); after pip install: crystod-example 04-03

At --qpoint GM every mode space gets the Mulliken symbol and the activity of its irrep (the rules of Spectroscopic activity), followed by the summary, one irrep per line, from the structure alone:

crystod-phonon --vibration -c 221_PPOSCAR_SrTiO3 --qpoint GM
...
* Irrep-grouped vibration spaces *
  Mode Space  1: irrep = GM4-(3) [T1u], dimension = 3, component numbers = 1..3, activity = IR
  Mode Space  2: irrep = GM4-(3) [T1u], dimension = 3, component numbers = 1..3, activity = IR
  Mode Space  3: irrep = GM4-(3) [T1u], dimension = 3, component numbers = 1..3, activity = IR
  Mode Space  4: irrep = GM4-(3) [T1u], dimension = 3, component numbers = 1..3, activity = IR
  Mode Space  5: irrep = GM5-(3) [T2u], dimension = 3, component numbers = 1..3, activity = silent

* Gamma-point activity *
GM4- [T1u] x4 (3 IR, 1 acoustic)
GM5- [T2u] x1 (silent)
  (acoustic: one set per occurrence of the irrep in the vector representation;
   without force constants the mode spaces are symmetry-adapted patterns,
   not normal modes)
...

How to read it:

  • The symbol in square brackets is the Mulliken symbol of the irrep, printed at Γ only, after the label in every Γ block; its conventions (phonopy’s tables and axis convention, B1/B2 of the standard setting) are those of section 04-03.

  • Without force constants the mode spaces are symmetry-adapted patterns, not normal modes, so the acoustic set is not one of them: the summary counts it from the vector representation (one set per occurrence of an irrep there). This is the Γ table of the Bilbao SAM program (SrTiO3: 4 T1u + T2u).

  • With --export-npz the file also holds an activities array, one entry per mode space. Away from Γ nothing is added.

The Wyckoff-orbit breakdown

The Γ run also breaks the mode spaces down by orbit of equivalent atoms (the Wyckoff-position table of SAM):

* Wyckoff-orbit breakdown (Gamma) *
  Wyckoff orbit Sr (1a): GM4- [T1u]
  Wyckoff orbit Ti (1b): GM4- [T1u]
  Wyckoff orbit O (3c): 2 GM4- [T1u] + GM5- [T2u]
  sum over the orbits: 4 GM4- + GM5- (equals the mode-space list)
  • Each Wyckoff orbit line is one orbit (spglib’s equivalent atoms, with the Wyckoff letter and its multiplicity in the conventional cell) and the Γ irreps its displacements contain; the last line checks that the orbits add up to the mode-space list. The library form is crystod.phonon.wyckoff_orbit_decomposition.

  • --raman-tensor prints the Raman tensors after the breakdown (see Raman tensors); at any other q point it is an error.

Wurtzite ZnO

The whole Γ output of wurtzite ZnO:

crystod-phonon --vibration -c 186_PPOSCAR_ZnO --qpoint GM --raman-tensor
 ### Inputed cell was converted into primitive cell. ###

* Q points (primitive) *
  GM       (0, 0, 0)
  A        (0, 0, 1/2)
  K        (1/3, 1/3, 0)
  H        (1/3, 1/3, 1/2)
  M        (1/2, 0, 0)
  L        (1/2, 0, 1/2)

* Selected Q point *
  GM       (0, 0, 0)

* Irrep-grouped vibration spaces *
  Mode Space  1: irrep = GM1(1) [A1], dimension = 1, component numbers = 1..1, activity = IR+Raman
  Mode Space  2: irrep = GM1(1) [A1], dimension = 1, component numbers = 1..1, activity = IR+Raman
  Mode Space  3: irrep = GM4(1) [B1], dimension = 1, component numbers = 1..1, activity = silent
  Mode Space  4: irrep = GM4(1) [B1], dimension = 1, component numbers = 1..1, activity = silent
  Mode Space  5: irrep = GM5(2) [E2], dimension = 2, component numbers = 1..2, activity = Raman
  Mode Space  6: irrep = GM5(2) [E2], dimension = 2, component numbers = 1..2, activity = Raman
  Mode Space  7: irrep = GM6(2) [E1], dimension = 2, component numbers = 1..2, activity = IR+Raman
  Mode Space  8: irrep = GM6(2) [E1], dimension = 2, component numbers = 1..2, activity = IR+Raman

* Gamma-point activity *
GM1 [A1] x2 (1 IR+Raman, 1 acoustic)
GM4 [B1] x2 (silent)
GM5 [E2] x2 (Raman)
GM6 [E1] x2 (1 IR+Raman, 1 acoustic)
  (acoustic: one set per occurrence of the irrep in the vector representation;
   without force constants the mode spaces are symmetry-adapted patterns,
   not normal modes)

* Wyckoff-orbit breakdown (Gamma) *
  Wyckoff orbit Zn (2b): GM1 [A1] + GM4 [B1] + GM5 [E2] + GM6 [E1]
  Wyckoff orbit O (2b): GM1 [A1] + GM4 [B1] + GM5 [E2] + GM6 [E1]
  sum over the orbits: 2 GM1 + 2 GM4 + 2 GM5 + 2 GM6 (equals the mode-space list)

* Raman tensors (Cartesian axes of the input cell) *
  GM1 [A1] (2 tensors):  [[a, 0, 0], [0, a, 0], [0, 0, 0]]   [[0, 0, 0], [0, 0, 0], [0, 0, a]]
  GM5 [E2] (2 tensors):  [[a, 0, 0], [0, -a, 0], [0, 0, 0]]   [[0, a, 0], [a, 0, 0], [0, 0, 0]]
  GM6 [E1] (2 tensors):  [[0, 0, 0], [0, 0, a], [0, a, 0]]   [[0, 0, a], [0, 0, 0], [a, 0, 0]]

Both 2b orbits give A1 + B1 + E2 + E1 as in SAM: the B1 pair is silent, E2 is Raman active only, and A1 and E1 are IR and Raman active, as observed for wurtzite ZnO. At any other q point the same layout is printed without the Γ-only blocks and without the brackets.

04-09. Phonon band unfolding (--unfold)#

Example directory: example/04-09_phonon_unfold (testsuite section 04-09); after pip install: crystod-example 04-09

The phonons of a distorted phase are computed in its own, larger cell and come out folded into its smaller Brillouin zone: Pnma CaTiO3 (20 atoms, four cubic cells) has 60 branches at every k, and which of them carries a cubic mode cannot be read off its band plot. --unfold draws the phonons of the distorted structure (the child) in the Brillouin zone of its high-symmetry parent instead, each child mode with the weight of its projection onto the parent Bloch states (P. B. Allen, T. Berlijn, D. A. Casavant and J. M. Soler, Phys. Rev. B 87, 085322 (2013)), and labels every unfolded level with its parent irrep. The modes that are imaginary in the parent, the octahedral tilts R4+ and M3+ of cubic CaTiO3 and its polar Γ mode GM4- [T1u], reappear in the child at real frequencies, and the run lists the child Γ levels they go into.

See also

Theory: Phonon band unfolding — the weight formula and its sum rules, the treatment of degenerate modes, the setting and the star arms, the domain average, and how the parent irreps of an unfolded level are assigned.

Input

Command

Output

child POSCAR + its FORCE_SETS, parent POSCAR

crystod-phonon --unfold --child-poscar POSCAR_child --child-dim 2 2 2 --parent-poscar POSCAR_parent

phonon_unfold.pdf (page 1: the child on the parent path, the domain average, the star arms; page 2: the parent irreps), phonon_unfold.dat (weights and labels), phonon_unfold.txt (the terminal report: the seven blocks below)

the same + the parent’s FORCE_SETS

add --parent-dim 2 2 2

also the parent bands, the parent levels at the special points and the child levels the soft parent modes go into

the same

add --trans-mat T

another of the equivalent settings (other arms of a star on the path)

the same

add --no-irreps

no parent-irrep labels: a one-page PDF, about a third faster

the same

add --export-npz FILE

every array in FILE.npz

the same

add -o PREFIX

PREFIX.pdf, PREFIX.dat, PREFIX.txt

the same

add --no-files

the report on the terminal only (the PDF and the .dat are still written)

cd example/04-09_phonon_unfold/CaTiO3_Pnma
crystod-phonon --unfold --child-poscar child/62_PPOSCAR_CaTiO3 --child-dim 2 2 2 \
               --parent-poscar parent/221_PPOSCAR_CaTiO3 --parent-dim 2 2 2
# -> phonon_unfold.pdf, phonon_unfold.dat
_images/phonon_unfold_CaTiO3.png

Page 1 of phonon_unfold.pdf for Pnma CaTiO3 unfolded onto Pm-3m (2x2x2 FORCE_SETS for both). Top left: the parent bands, with the imaginary tilts at M (M3+, -5.44 THz) and R (R4+, -5.74 THz) and the polar mode GM4- [T1u] at Γ (-1.44 THz) drawn below zero. Top middle: the child along the same path (one domain), marker area and color proportional to the weight, with the child point of every vertex on top; the child has no imaginary mode, and the weight of the tilts sits on child modes between about 4 and 10 THz. Top right: the average over the six orientation domains. Bottom: every arm of the stars of the path vertices; the shaded columns are the arms that fold onto the child Γ point, among them the M arm (1/2, 0, 1/2) of the in-phase tilt, which the path does not pass. The notes beside it give the pseudo-parent cell and explain the panels.#

What is read

What is read:

  • the child: its POSCAR (--child-poscar, or -c) and the FORCE_SETS of its supercell (--child-dim, or --dim; FORCE_CONSTANTS with --child-readfc), next to the POSCAR, else in the working directory;

  • the parent: its POSCAR (--parent-poscar, always needed), which fixes the transformation, the band path and the irrep labels. Its force data are optional: with --parent-dim its FORCE_SETS (FORCE_CONSTANTS with --parent-readfc) is read next to the parent POSCAR, and the run adds the parent bands, the parent levels at the special points and the child levels the soft parent modes go into.

In each place a force file named after the POSCAR comes first: FORCE_SETS_POSCAR_child next to POSCAR_child (the name macer gives the force data of each structure; FORCE_CONSTANTS_POSCAR_child with --child-readfc), then FORCE_SETS. macer names that file after the POSCAR it was given, the unrelaxed input, while the forces belong to the cell it relaxed (the POSCAR and CONTCAR-<name> it writes): give the relaxed cell as the POSCAR, with the force file named after it or as FORCE_SETS next to it. With these per-structure names, child and parent can share one directory: with POSCAR_child, POSCAR_parent, FORCE_SETS_POSCAR_child and FORCE_SETS_POSCAR_parent in the working directory the command is literally

crystod-phonon --unfold --child-poscar POSCAR_child --child-dim 2 2 2 --parent-poscar POSCAR_parent --parent-dim 2 2 2

The example keeps the two structures in two directories instead (child/ and parent/, each with its FORCE_SETS). When the child and the parent would read the same file the run stops with an ERROR. Every phonopy load runs in an empty temporary directory with absolute paths, so a FORCE_CONSTANTS lying in the working directory is never read in place of FORCE_SETS (the trap described in section 04-02). The two structures need no common setting, origin or atom order: the transformation and the pairing of the atoms are worked out from the structures themselves. The run prints seven blocks, explained below, and takes about 13 s for this example on a Mac Studio M3 Ultra (10 s for the AlF3 example, an R-3c child of 8 atoms).

The transformation#

The transformation between the two cells is not an input. It is computed from the two structures by the symmetry-mode analysis of crystod-group --supergroup-cif PARENT --subgroup-cif CHILD, every child atom is then paired with its ideal site in that setting, and the setup block prints the setting in two conventions:

The setup block
* Unfolding setup *
child          child/62_PPOSCAR_CaTiO3: Pnma (No. 62), 20 atoms, cell used as given
child forces   child/FORCE_SETS, supercell 2 2 2
parent         parent/221_PPOSCAR_CaTiO3: Pm-3m (No. 221), 5 atoms, cell used as given
parent forces  parent/FORCE_SETS, supercell 2 2 2
setting        crystod-group --supergroup-cif parent/221_PPOSCAR_CaTiO3
               --subgroup-cif child/62_PPOSCAR_CaTiO3 (1 of 24 equivalent settings)
transformation parent -> child as crystod-group prints it (columns of P: the child basis in
               parent units, (a', b', c') = (a, b, c) P; last column: the origin shift p,
               x_parent = P x_child + p):
  [     1     0    -1 ] [   1/2 ]
  [     0     2     0 ] [     0 ]
  [     1     0     1 ] [   1/2 ]
M (rows)       1 0 1  0 2 0  -1 0 1
               (A_child = M A_parent, k_child = M k_parent; the form --trans-mat takes)
origin shift   p = (1/2, 0, 1/2) (parent fractional)
cells          N = 4 parent cells in the child cell; n_child = 20, n_parent = 5 atoms (Ca Ti O O O)
pseudo-parent  A_pp = inv(M) A_child: a = 3.8182 3.8078 3.8182 A, angles 90.000 88.983 90.000 deg
strain         lengths -0.69 -0.96 -0.69 %, volume -2.35 % against the parent cell (a = 3.8449 A);
               rotation 45.0 deg
displacement   max 0.4278 A (O), rms 0.3442 A in the child lattice;
               0.4314 A in the strain-free parent lattice
               (crystod-group: 0.4314 A)
condensed      X5+ 0.4889, M2+ 0.0095, M3+ 0.8660, R4+ 1.1901, R5+ 0.0954 A
               (crystod-group mode amplitudes)
folding        parent k folding onto the child Gamma point: GM (0, 0, 0), X (0, 1/2, 0),
               M (1/2, 0, 1/2), R (1/2, 1/2, 1/2)

How to read the setup block:

  • transformation: the setting exactly as crystod-group prints it for the same two files (its * Transformation matrix (parent -> child) * block, the AMPLIMODES convention): the columns of P are the child basis vectors in parent units, the last column is the origin shift p, and x_parent = P x_child + p.

  • M (rows): the same setting in the convention of the unfolding and of --trans-mat: the rows of M are the child lattice vectors in parent units, A_child = M A_parent with the lattice vectors as rows, and fractional wave vectors transform as k_child = M k_parent. M is the transpose of P when, as here, the two files are the cells of the unfolding; a centered parent (a conventional I4/mmm file, say) is unfolded on its primitive cell, and M then refers to that cell. origin shift is the child origin in parent fractional coordinates.

  • pseudo-parent is the parent cell as it sits inside the child, A_pp = inv(M) A_child, and strain compares it with the parent cell: -2.35 % in volume for CaTiO3, -9.66 % for AlF3, whose tilt pulls the lattice in. rotation is the rigid rotation between the child and the parent frames.

  • displacement is the largest displacement of a child atom from its ideal site; measured in the strain-free parent lattice it is crystod-group’s maximum atomic displacement. condensed lists crystod-group’s mode amplitudes, and folding the N = det M parent k that fold onto the child Γ point.

Another setting (--trans-mat)

The child sits in the parent in 24 equivalent settings here, which describe one crystal in differently oriented frames, and other settings put other arms of a star on the path. --trans-mat chooses another of them: nine integers, row-wise, child = T @ parent (the crystod-bz convention). The origin shift is not an option; it follows from the setting (p = W p0 + w for the parent operation (W, w) printed in the setting row), and a matrix that is not one of the equivalent settings is refused with the list of the valid ones. With the long Pnma axis along the parent c:

crystod-phonon --unfold --child-poscar child/62_PPOSCAR_CaTiO3 --child-dim 2 2 2 \
               --parent-poscar parent/221_PPOSCAR_CaTiO3 --parent-dim 2 2 2 \
               --trans-mat 1 1 0  0 0 2  1 -1 0 -o phonon_unfold_c
* Unfolding setup *
...
setting        --trans-mat 1 1 0  0 0 2  1 -1 0: the crystod-group setting 1 0 1  0 2 0  -1 0 1
               transformed by the parent operation W = 0 0 1  1 0 0  0 1 0, w = (0, 0, 0)
               (24 equivalent settings)
...
M (rows)       1 1 0  0 0 2  1 -1 0
               (A_child = M A_parent, k_child = M k_parent; the form --trans-mat takes)
origin shift   p = (1/2, 1/2, 0) (parent fractional)
...
folding        parent k folding onto the child Gamma point: GM (0, 0, 0), X (0, 0, 1/2),
               M (1/2, 1/2, 0), R (1/2, 1/2, 1/2)

Which path#

The path is the parent’s: the seekpath path of the parent primitive cell, the one --fatband uses (GM-X-M-GM-R-X|R-M for Pm-3m, 51 points per leg), in fractional coordinates of the parent reciprocal basis; --band, --band-labels and --npoints give another one in the same coordinates. At every parent k the child is computed at K = M k, and the path block prints where each vertex lands in the child:

The path and star-arm blocks
* Unfolding path *
path           GM-X-M-GM-R-X|R-M (seekpath, parent primitive basis), 51 points per leg, 306 k
distances      1/A without 2 pi, reciprocal metric of the pseudo-parent cell A_pp
vertex  k (parent)           K = M k (child)       child point
GM      (0, 0, 0)            (0, 0, 0)             GM
X       (0, 1/2, 0)          (0, 1, 0)             GM
M       (1/2, 1/2, 0)        (1/2, 1, -1/2)        U
GM      (0, 0, 0)            (0, 0, 0)             GM
R       (1/2, 1/2, 1/2)      (1, 1, 0)             GM
X       (0, 1/2, 0)          (0, 1, 0)             GM
R       (1/2, 1/2, 1/2)      (1, 1, 0)             GM
M       (1/2, 1/2, 0)        (1/2, 1, -1/2)        U

The arms of one parent star are no longer equivalent in the child. The star-arm block lists every arm of the stars of the path vertices, and the lower panel of page 1 draws them all:

* Star arms of the path vertices *
point groups   child 8 operations (Pnma), parent 48 (Pm-3m): 6 orientation domains
star  arm k (parent)         K = M k mod 1        child point  to child GM  path  class
GM    (0, 0, 0)              (0, 0, 0)            GM           yes          path  a
X     (0, 1/2, 0)            (0, 0, 0)            GM           yes          path  a
X     (1/2, 0, 0)            (1/2, 0, 1/2)        U            -            -     b
X     (0, 0, 1/2)            (1/2, 0, 1/2)        U            -            -     b
M     (1/2, 1/2, 0)          (1/2, 0, 1/2)        U            -            path  a
M     (1/2, 0, 1/2)          (0, 0, 0)            GM           yes          -     b
M     (0, 1/2, 1/2)          (1/2, 0, 1/2)        U            -            -     a
R     (1/2, 1/2, 1/2)        (0, 0, 0)            GM           yes          path  a
  (arms with the same class letter are related by a child operation or by time reversal and give the
   same unfolded spectrum; 'to child GM' = the arm folds onto the child Gamma point, where a
   condensed distortion lives)
  NOTE: the condensed arm M (1/2, 0, 1/2) is not on the band path; it is shown in the lower panel of
        page 1 and in the child GM mode origin.

How to read the path and star-arm blocks:

  • K = M k (child) and child point: where each parent vertex lands in the child zone; distances are in 1/Å without 2 pi, in the reciprocal metric of the pseudo-parent cell.

  • to child GM: yes for an arm that folds onto the child Γ point, where a condensed distortion lives; path: the arm is on the band path.

  • class: arms with the same class letter are related by an operation of the child or by time reversal and give the same unfolded spectrum.

  • The NOTE names a condensed arm that the path does not pass; it is shown in the lower panel of page 1 and in the child GM mode origin. In CaTiO3 the condensed in-phase tilt M3+ lives on the M arm (1/2, 0, 1/2); no setting puts both condensed arms (this one and X (0, 1/2, 0)) on the path.

  • The right panel of page 1 is the domain average: the average over all arms of the star of k, the spectrum of a crystal with equal populations of its orientation domains (6 for Pnma, 4 for R-3c). It is written as the second dataset of the .dat file.

Weights#

The weight P_J(k) of child mode J at the parent k, between 0 and 1, is the squared norm of its projection onto the Bloch states of the parent translations: how much of the mode is a parent phonon of wave vector k. When reading it:

  • At every k the weights of all child modes add up to 3 n_parent (15 for CaTiO3); the summary block prints the deviation, and above 1e-6 the run stops with an internal ERROR.

  • An undistorted supercell of the parent gives weights of 0 or 1 at exactly the parent frequencies; the further the weights spread over the child modes, the more the distortion mixes the parent branches.

  • Inside a degenerate level (|df| <= 1e-4 THz) only the sum P_g of the level has a physical meaning; where two levels closer than 1e-4 THz form one group, read such groups by their P_g.

  • Page 1 draws one marker per child mode and leaves out the modes with a weight below --weight-min (default 0.02); page 2, the labels and the tables work per degenerate group with its weight P_g, and a group with P_g below --weight-min is not drawn and gets the label -. The .dat file keeps every row.

  • The weights are not those of phonopy’s phonopy.unfolding.core.Unfolding, which keeps the Bloch phase of the actual atomic positions (see CrystOD for phonopy users).

Parent irreps of the unfolded levels#

Every unfolded level is labeled with the parent irreps it belongs to: the ISO-IR labels --irreps gives the parent POSCAR, with the Mulliken symbol at Γ. Like those, they refer to the origin of the parent file: with Ti at the origin the two tilts are R4+ and M3+, with Ca at the origin the same tilts are R5- and M2+ (see Irrep labels and the frame of a structure).

A degenerate group of child modes gets one label for all its members:

  • the irrep holding at least 50 % of the group weight P_g (M3+);

  • else the smallest set of irreps that the child symmetry cannot separate and that holds at least 50 % together, written A/B: at k = (0.49, 0.49, 0) on the Σ line the level at 3.559 THz has 39 % SM1, 39 % SM2 and 22 % SM3 and is labeled SM1/SM2;

  • else mixed, and - below --weight-min.

_images/phonon_unfold_irreps_CaTiO3.png

Page 2 of phonon_unfold.pdf: the parent bands colored by their parent irrep, the unfolded child colored by the label of each degenerate group (one marker per group, area = P_g, gray for mixed), and the groups at GM, X, M and R as bars of length P_g split into their irreps, named where P_g >= 0.5. The legend has one row per k type, with the Mulliken symbols at Γ; colors repeat between k types.#

The irreps block
* Unfolded irreps at special points *
...
M (1/2, 1/2, 0) -> child U
  parent levels: M3+ -5.4389, M5- 1.9796 x2, M2- 2.3734, M3- 4.3106, M5- 7.0016 x2, M5+ 8.4297 x2,
                 M4+ 12.9346, M5- 13.7378 x2, M3- 15.3635, M2+ 17.3250, M1+ 24.5424
  not separated by the child symmetry: {M1+, M2+, M3+, M4+, M5+}, {M2-, M3-, M5-}
  freq(THz)   n    P_g  label              fractions
     2.8034   2  0.691  M3-                M3- 0.932, M5- 0.068
     2.8140   2  0.453  M2-                M2- 0.677, M5- 0.323
     3.1479   2  0.352  M5-                M5- 0.926, M2- 0.074
     3.5553   2  0.758  M5-                M5- 0.833, M3- 0.167
     3.9796   2  0.447  M3+                M3+ 0.953, M5+ 0.032, M4+ 0.015
     4.1702   2  0.289  M3-                M3- 0.798, M5- 0.202
     5.1424   2  0.768  M2-                M2- 0.586, M5- 0.414
     5.6350   2  0.435  M3+                M3+ 0.831, M5+ 0.162
...
R (1/2, 1/2, 1/2) -> child GM
  parent levels: R4+ -5.7403 x3, R5+ 3.4194 x3, R4- 12.4092 x3, R5+ 12.7656 x3, R3+ 17.1171 x2,
                 R1+ 25.2933
  not separated by the child symmetry: {R1+, R3+, R4+, R5+}
  freq(THz)   n    P_g  label              fractions
     4.3684   1  0.348  R4+                R4+ 0.679, R5+ 0.321
     4.6861   1  0.233  R5+                R5+ 0.518, R4+ 0.482
     5.1343   1  0.796  R4+                R4+ 0.959, R5+ 0.041
     5.2623   1  0.337  R4+                R4+ 0.667, R5+ 0.333
     5.5078   1  0.926  R4+                R4+ 1.000
     5.7633   1  0.932  R5+                R5+ 1.000
...
  (rows: the degenerate groups of child modes (|df| <= 1e-4 THz) with P_g >= 0.10; the .dat file has
   all groups. The label is the irrep holding at least 50 % of P_g, else the smallest set of irreps
   that the child symmetry cannot separate and that together hold at least 50 % (written A/B), else
   mixed; two irreps that time reversal joins count as one (written S1+S2).)

How to read the irreps block:

  • parent levels (with --parent-dim) are the levels of the parent itself, labeled with the same projectors.

  • not separated by the child symmetry: the sets of parent irreps that one child level can mix at this point. Within such a set the mixing is real, and the label is a decomposition of the unfolded vector, not a symmetry of the child; where every irrep is separated, as at X of CaTiO3, every level is pure to round-off (unless two child levels happen to be degenerate).

  • The rows are the degenerate groups of child modes with P_g >= 0.10 at the distinct path vertices (the .dat file has all of them), with the number of modes n, the label and the largest irrep fractions.

  • A pair of irreps that time reversal joins into one physically irreducible representation is one unit, written as label_phonon_modes writes it (S1+S2, U2++U3+ or R1+R2 when a Pnma cell is unfolded onto itself); the cubic parents of the examples have no such pairs.

  • In CaTiO3, the M3+ level of the M arm on the path (-5.44 THz in the parent; this arm is not the condensed one) reappears in the child mainly at 3.98 and 5.64 THz, and the R4+ weight sits at 4.4 to 9.6 THz, mostly on the levels at 5.13 and 5.51 THz.

  • --no-irreps skips the labels (no irreps block, a one-page PDF, about a third faster).

Where the child Γ modes come from#

The child Γ point collects the N parent k that fold onto it, here GM, X (0, 1/2, 0), M (1/2, 0, 1/2) and R. The child Γ modes are unfolded onto all of them, so this block also covers the condensed M arm that the path misses:

The child GM mode origin block
* Child GM mode origin *
child GM (K = 0), 60 modes, from the parent k folding onto it: GM (0, 0, 0), X (0, 1/2, 0),
  M (1/2, 0, 1/2) (not on the path), R (1/2, 1/2, 1/2)
modes     freq(THz)  n  child irrep                            origin
1,2,3        0.0000  3  GM2-+GM3-+GM4- [B1u+B3u+B2u] acoustic  GM GM4- [T1u] 3.00
4            2.9239  1  GM4- [B2u] IR                          X X5- 0.82
...
11           4.3684  1  GM1+ [Ag] Raman                        M M3+ 0.58
...
15           5.1343  1  GM4+ [B2g] Raman                       R R4+ 0.80
...
18           5.5078  1  GM2+ [B1g] Raman                       R R4+ 0.93
...
  (origin: the folding k with the largest P_g(k) of the level, its label there and that P_g(k))
modes     freq(THz)  n  GM                X             M             R
1,2,3        0.0000  3  3.000 GM4- [T1u]  0.000 -       0.000 -       0.000 -
4            2.9239  1  0.128 GM4- [T1u]  0.821 X5-     0.000 -       0.050 R4-
...
11           4.3684  1  0.000 -           0.071 X5+     0.581 M3+     0.348 R4+
...
15           5.1343  1  0.000 -           0.200 X5+     0.004 -       0.796 R4+
...
18           5.5078  1  0.000 -           0.027 X1+     0.047 M5+     0.926 R4+
...
  (columns: weight P_g(k) of the child level at each folding k and its label there ('-' below 0.02);
   the weights of a level add up to its number of modes)
soft parent levels and the child GM levels they go into (content c_g >= 0.02):
  GM (0, 0, 0) GM4- [T1u] -1.4414 x3: 6.250 B3u 0.60, 3.973 B2u 0.59, 6.247 B1u 0.51,
    7.288 B2u 0.35, 3.292 B3u 0.32, 3.438 B1u 0.26, 9.085 B1u 0.15, 8.585 B3u 0.05, ...;
    mean 5.83 THz
  M (1/2, 0, 1/2) M3+ -5.4389: 4.368 Ag 0.58, 8.103 Ag 0.22, 9.621 Ag 0.12, 7.172 Ag 0.07;
    mean 6.06 THz
  R (1/2, 1/2, 1/2) R4+ -5.7403 x3: 5.508 B1g 0.93, 5.134 B2g 0.76, 8.103 Ag 0.33, 4.368 Ag 0.24,
    5.262 B2g 0.22, 9.621 Ag 0.22, 4.686 Ag 0.11, 7.172 Ag 0.09, ...; mean 6.09 THz

How to read it:

  • The first table lists every child level with its child irrep and its origin: the folding k of its largest weight P_g(k), the label there and that weight. The child irreps are those label_phonon_modes gives the child in its own setting (Pnma labels, Mulliken symbols and activity).

  • The second table gives the weight and the label of each level at each folding k (- below 0.02); the weights of a level add up to its number of modes. A child with more folding k gets several such tables, so that no line is wider than 100 columns. The parent labels at GM carry the Mulliken symbols of the parent, as in the other blocks.

  • soft parent levels (with --parent-dim): the parent levels below -0.1 THz at the folding k (a fixed cutoff: --unfold refuses --threshold) followed into the child. The content c_g of child level g is the summed squared overlap of its unfolded vectors with the eigenvectors of the parent level, and mean is the content-weighted mean frequency.

  • In CaTiO3, every Raman-active mode comes from X, M or R: the parent Γ point has only odd modes (T1u and T2u), so its weight on the gerade child modes is zero. The in-phase tilt M3+ goes mainly into the Ag mode at 4.37 THz (content 0.58), the antiphase tilt R4+ into B1g 5.51 THz (0.93), B2g 5.13 THz (0.76) and a series of Ag and B2g modes, both with a content-weighted mean near 6 THz; the polar GM4- level of the parent goes into IR-active modes only.

The summary

The summary block closes the run with the checks and the timings:

* Unfolding summary *
k points       306 on the path; 2768 arms of their stars unfolded for the domain average
               (6 orientation domains)
modes          60 child modes at every k; 18360 (k, mode) pairs, 14832 with weight >= 0.02
sum rule       max |sum_J P_J(k) - 15| = 3.4e-14 on the path, 2.5e-14 for the domain average
arm classes    arms of one class agree to 7.1e-13 THz and 8.1e-12 in weight
               (child operations and time reversal)
irreps         projectors 2.5e-15 (completeness, idempotency, hermiticity);
               per-irrep sum rule 1.4e-14; parent levels pure to 4.7e-15;
               weight forbidden by the child symmetry 1.9e-22
labels         ISO-IR labels computed at 16 k and copied along 6 straight runs (0 mismatches);
               groups with P_g >= 0.02: 13900 one irrep, 789 sets (A/B), 0 mixed
timings (CPU)  mapping 2.9 s, phonopy 0.9 s, unfolding 0.07 s, star arms and domain average 0.6 s,
               irreps 2.9 s, child GM origin 0.2 s, figures 5.4 s, total 13.3 s

* Output files *
  Unfolded bands (2 pages) written to: phonon_unfold.pdf
  Weights and labels written to: phonon_unfold.dat
  Report written to: phonon_unfold.txt (this output)

How to read the summary:

  • sum rule: the largest deviation of the summed weights from 3 n_parent, on the path and for the domain average (above 1e-6 the run stops with an internal ERROR).

  • arm classes: how closely the arms of one class agree in frequency and weight; they are related by child operations and time reversal.

  • irreps: the checks of the projectors and of the irrep weights; weight forbidden by the child symmetry is the weight found in parent irreps that the child symmetry does not allow for the level, zero up to round-off.

  • labels: where the ISO-IR labels were computed, and how many groups got one irrep, a set (A/B) or mixed; timings (CPU) gives each step.

Output

Files:

  • -o PREFIX (default phonon_unfold) names the two files, PREFIX.pdf and PREFIX.dat (a directory, -o out/, gets out/phonon_unfold.pdf and .dat); --export-npz FILE adds a third with every array (FILE.npz; phonon_unfold.npz inside a directory).

  • The PDF has two pages (one with --no-irreps): page 1 with the parent bands (without --parent-dim, the child modes at K = M k as thin gray lines, folded, without weights), the child on the path, the domain average and the star arms; page 2 with the parent irreps. With one marker per child mode and k, the CaTiO3 file is about 10 MB. Every text is fitted to its room in the font in use (Arial, or DejaVu Sans where Arial is not installed, as on most Linux systems): titles and notes are set smaller or wrapped (the pseudo-parent cell and the meaning of the panels are in the notes of page 1), and a crowded level panel makes the panels taller and its labels smaller, down to 3 pt, and beyond that keeps the labels of the largest P_g (a note under the legend says so; the terminal block lists every level). Test section 04-09 checks the layout on the rendered ink of both pages, in Arial and in DejaVu Sans (whose glyphs are roughly 10-15 % wider): no text leaves its page and no two texts overlap by more than 0.25 pt.

  • The .dat file (about 6 MB for CaTiO3) holds two datasets separated by two blank lines, with the conventions in its header. Dataset 0 is the path, one row per k and child mode: k_index distance kx ky kz mode frequency weight group_weight label fraction (frequencies in THz, imaginary ones negative; fraction is the share of P_g held by the label). Dataset 1 is the domain average, one row per class of equivalent arms and mode: k_index distance class multiplicity n_arms akx aky akz mode frequency weight, with the classes numbered from 1 at each k and akx aky akz the arm of the class that was unfolded (the k index runs from 0, the modes from 1). In gnuplot: plot 'phonon_unfold.dat' index 0 using 2:7:(sqrt($8)) with points pt 7 ps variable (and index 1 using 2:10:(sqrt($11)) for the average).

  • The .npz file (np.load(FILE, allow_pickle=False)) holds the setting (M, origin_shift, setting_P, setting_p, equivalent_settings), the cells and the atom map (A_child, A_parent, A_pp, kappa, ideal_frac_child, …), the path (k_parent, K_child, distances, ticks), the bands (frequencies, weights, weights_canonical, group_weight, degenerate_group, vectors_canonical), the star arms (arm_*), the domain average (davg_*), the irreps (irrep_units, irrep_weights, group_label, group_fraction, and with --parent-dim parent_frequencies, parent_labels), the child Γ origin (gamma_*), the checks and timings, and the conventions as a string (conventions). Per mode, weights is the phonopy basis, and weights_canonical, vectors_canonical, arm_weights_canonical, davg_weights, irrep_weights and gamma_weights (canonical at each of the N folding k) the rotated degenerate modes, of which only the sums over a level have a physical meaning; group_weight, group_label, group_fraction, gamma_group_label and gamma_child_irrep are per level, every mode carrying the value of its level.

Options

option

meaning

--child-poscar FILE (-c)

the child (distorted) structure; its force file is read next to it, else in the working directory (FORCE_SETS_<file name> before FORCE_SETS)

--child-dim N N N (--dim)

the supercell of the child force calculation (required)

--child-readfc (--readfc)

read the child’s FORCE_CONSTANTS instead of FORCE_SETS

--parent-poscar FILE (--parent)

the parent structure (required); the path, the labels and the origin refer to its primitive cell

--parent-dim N N N

the supercell of the parent force calculation: the parent’s FORCE_SETS (FORCE_SETS_<file name> first) is read next to its POSCAR, and the parent bands, levels and soft-mode destinations are added

--parent-readfc

read the parent’s FORCE_CONSTANTS instead (with --parent-dim)

--trans-mat T (--trans-matrix)

another of the equivalent settings: nine integers, row-wise, child = T @ parent (default: the setting of crystod-group)

--band, --band-labels, --npoints

a manual path in parent primitive coordinates, its labels, and the points per leg (default 51)

--no-irreps

skip the parent-irrep labels

--weight-min W

the weight cut (default 0.02): page 1 leaves out the markers of the modes below it, page 2, the labels and the tables the degenerate groups with P_g below it (label -)

-o PREFIX

the names of the PDF and .dat files (default phonon_unfold)

--export-npz FILE

write every array to an .npz file

--tolerance

the tolerance of the symmetry-mode analysis that finds the setting, in (0, 0.5] Å (default 0.01, as crystod-group)

Limitations
  • No NAC: --nac is refused, because unfolding the LO/TO-split bands near Γ needs the direction of approach to Γ.

  • The parent must be related to the child by a group-subgroup setting that crystod-group --supergroup-cif finds, with the same composition per parent cell and no displacement above 1.8 Å.

  • A child file that is not a primitive cell is unfolded on its primitive cell, as a centered parent is (the setup block says so); an exact supercell of the parent is thereby reduced to the parent cell itself and has N = 1.

  • phonopy symmetrizes the force constants it builds from a FORCE_SETS but takes a FORCE_CONSTANTS as it is, so the two files of one calculation give slightly different weights (the sizes for the two examples are in the theory section); only the sum over a level has a meaning (see Weights).

  • The usual (type-1) FORCE_SETS stores the number of supercell atoms but not the shape of the supercell. A wrong number of atoms stops the run with an ERROR; a wrong --child-dim (or --parent-dim) with the right number, 4 2 1 for a 2x2x2 calculation, is not caught by that check. phonopy then either stops with its own ERROR (“Input forces are not enough to calculate force constants”, as for both example parents and the AlF3 child) or, as for the CaTiO3 child, builds wrong force constants that show up as spurious imaginary frequencies.

  • The labels of a distorted child are a decomposition of the unfolded vectors into parent irreps, not symmetries of the child: within a set the child symmetry cannot separate the mixing is real, and near 50 % the rule can move a level between one irrep and a set.

  • The domain average assumes equal domain populations and averages at equal fractional k of the pseudo-parent cells; for a strongly strained child (AlF3, -9.66 % in volume) these are not exactly the same Cartesian wave vectors in every domain.

  • The origin of the child modes in parent k and irreps is listed at the child Γ point only (not along a path of the child zone); phonons only: the electronic bands of two VASP runs are unfolded by crystod --unfold.

  • Checked so far on centrosymmetric children (Pnma and R-3c) of the symmorphic parent Pm-3m, and on a Pnma cell unfolded onto itself; a polar or chiral child and a non-symmorphic parent with a distorted child have not been tested.

In Python the steps are functions of crystod.phonon: load_unfold_inputs, find_parent_mapping, make_parent_path, unfold, domain_average, irrep_resolve and gamma_origin (Band unfolding onto the parent zone).

04-10. Phonon mode viewer (--visualize)#

Example directory: example/04-10_phonon_visualize (testsuite section 04-10); after pip install: crystod-example 04-10

--visualize writes one standalone HTML page that shows every phonon mode at the special points of the k path, grouped by irrep, as arrows and as an animation, next to the dispersion and the mode table of each point.

See also

Theory: Displacement patterns of the phonon mode viewer — how the drawn pattern is built from phonopy’s eigenvectors, and how it is checked against phonopy’s modulation.

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --visualize --dim 4 4 4 -c POSCAR

phonon_visualize.html (dispersion, mode tables, arrows and animation at every labeled special point), band_vector.yaml (the bands with eigenvectors); terminal: the mode tables

the same

add --bond Ti O 2.1

the bonds and coordination polyhedra in the 3D scene

the same

add --all-irreps

phonon_visualize_all.html: also the midpoints of the path segments

the same

add --qpoint 0.5 0.5 0

that q point only

The dispersion shows the bands, path and labeled points of the --irreps figure, with a dot on every degenerate level of the special points; the mode table of each point gives the ISO-IR label of every degenerate set (the labels of phonon_irreps.yaml, with the Mulliken symbol and the IR/Raman/silent/acoustic activity at GM); the 3D scene shows the displacement pattern of the selected mode as arrows, which an animation turns into the vibration. It is the phonon counterpart of the SALC viewer of crystod --visualize, and the browser counterpart of --vector: the partners of a degenerate level are the same symmetry-adapted eigenvectors. Next to the page the run writes band_vector.yaml, phonopy’s band.yaml with the eigenvector of every band along the same path. With --all-irreps, the pair of --irreps --all-irreps, the page also shows the midpoint of every segment of the path (the symmetry lines DT, Z, SM, … with their line irreps; below).

cd example/04-10_phonon_visualize/SrTiO3_Pm-3m
crystod-phonon --visualize --dim 4 4 4 -c 221_PPOSCAR_SrTiO3 --bond Ti O 2.1
# -> phonon_visualize.html, band_vector.yaml   (-o FILE renames the page)

Open the page in a web browser (on macOS open phonon_visualize.html). It opens on the first q point and its first band; a hash added to the address opens another one: phonon_visualize.html#q=R&mode=1&view=a selects the first point named R (G, GM or GAMMA for Γ), band 1 and the view down the a axis. That is the figure below: the imaginary R5- triplet of SrTiO3 (the antiphase rotation of the TiO6 octahedra; R4+ with Ti at the origin), whose first partner rotates the octahedra about a, in antiphase from one layer to the next, so that the arrows of two layers meet at every apex in this view.

Open the SrTiO3 phonon mode viewer full-screen

The page above is phonon_visualize.html#q=R&mode=1&view=a of the SrTiO3 example (--bond Ti O 2.1), the live output of the command: the dispersion with the imaginary R branch in red and the selected level ringed, the R table with the imaginary rows in red, and the first R5- partner down the a axis, 2 x 2 x 2 primitive cells.

The terminal output

* Structure *
  Space group: Pm-3m (#221)
  Formula: SrTiO3
  Supercell: 4 x 4 x 4 (FORCE_SETS)

* Band path *
  k path (seekpath): GM-X-M-GM-R-X | R-M  (306 q points)
  Labeled points: X, GM, R, M

* Phonon modes at q = GM (0, 0, 0) *
Band  Freq (THz)  Irrep    Comp.  Mulliken  Activity
   1      0.0000  GM4-(3)      1  T1u       acoustic
   2      0.0000  GM4-(3)      2  T1u       acoustic
   3      0.0000  GM4-(3)      3  T1u       acoustic
   4      2.6629  GM4-(3)      1  T1u       IR
  ...
  10      7.3465  GM5-(3)      1  T2u       silent
  ...
  15     15.3054  GM4-(3)      3  T1u       IR
  Display cell: primitive, 1 x 1 x 1 cells

  ... (X and M)

* Phonon modes at q = R (1/2, 1/2, 1/2) *
Band  Freq (THz)  Irrep   Comp.
   1     -1.0867  R5-(3)      1
   2     -1.0867  R5-(3)      2
   3     -1.0867  R5-(3)      3
   4      3.9891  R4-(3)      1
  ...
  15     23.2302  R2-         1
  Display cell: primitive, 2 x 2 x 2 cells

* Output files *
  Phonon band structure with eigenvectors written to: band_vector.yaml
  Phonon mode viewer written to: phonon_visualize.html

The terminal lists, for every q point of the page, the table the page shows (the band, its frequency, the label of its degenerate set and its component inside the set; at GM also the Mulliken symbol and the activity) and the display cell of its pattern. A run takes about 3 s for these 4x4x4 data; the page is about 100 kB and band_vector.yaml 4.0 MB (306 q points, 15 bands).

Reading the page#

  • q point: one button per labeled special point of the path, with its coordinates as fractions of the primitive reciprocal basis, in the order in which the path first reaches it (GM, X, M, R). A point the path visits twice (GM) sits at the vertex the --irreps figure labels. With --all-irreps the segment midpoints follow on a row of their own (below).

  • Mode table: Band (1-based, frequency order), Freq (THz) (negative: imaginary), Irrep (the label of the degenerate set as phonon_irreps.yaml writes it: GM4-(3), X3- for a one-dimensional irrep, GM1 + GM5(2) for a set holding several irreps), Comp. (the component inside the set, 1 to its dimension) and, at GM, Mulliken (T1u) and Activity (IR, Raman, IR+Raman, silent, acoustic). The rows of a level below --threshold (default -0.1 THz) are red. Click a row to show the mode; the up and down arrow keys step through the table.

  • Dispersion: click a dot to select its q point and the first component of its level; the selected level is ringed, imaginary branches and dots are red. Hovering a dot shows its label and frequency. With --all-irreps the segment midpoints have their dots too, in the middle of their legs.

  • Arrows: the real part of the displacement pattern at phase 0, from the equilibrium position of every atom; a displacement below 2 % of the largest gets no arrow. The amplitude slider sets the largest displacement in Å (default 0.25 times the nearest-neighbor distance, rounded to 0.05 Å: 0.5 Å for ScF3 and SrTiO3).

  • animate: the atoms move along the pattern as the phase runs through a cycle (the speed slider sets the cycles per second); arrows, bonds and polyhedra move with them. Unchecking returns to the static pattern.

More on reading the output
  • Display cell: the smallest supercell over which the Bloch phase of q is periodic, as --vector builds it: 1 x 1 x 1 primitive cells at GM, 1 x 2 x 1 at X, 2 x 2 x 1 at M, 2 x 2 x 2 at R (--conventional: the conventional cell times the multiples q needs; a segment midpoint: 1 x 4 x 1 at DT (0, 1/4, 0)). Atoms on the cell faces are drawn on both faces, as VESTA does, each with the phase of its own lattice translation. The line under the display controls names the cell, and at a segment midpoint its segment (Segment: GM-X (midpoint)).

  • Bonds and polyhedra (--bond EL1 EL2 MAX, repeatable): the bonds up to MAX Å and the coordination polyhedra around EL1, as in crystod --visualize; the periodic images that complete the polyhedra are drawn too, and move with the pattern.

  • View along a / b / c: an orthographic view down that axis of the display cell (reset returns to the perspective view); drag to rotate, scroll to zoom; the compass in the corner follows the view. The show ... checkboxes hide the arrows, the cell edges and axes, the atoms, the bonds and the polyhedra.

The ScF3 example

The second example, example/04-10_phonon_visualize/ScF3_Pm-3m, opens on the acoustic GM4- [T1u] triplet (crystod-phonon --visualize --dim 4 4 4 -c 221_PPOSCAR_ScF3); its lowest R level is the octahedral rotation R4+ at +1.42 THz, real in this harmonic calculation.

Open the ScF3 phonon mode viewer full-screen

The ScF3 page as it opens: GM, band 1 (an acoustic GM4- [T1u] mode, every atom displaced alike), 1 x 1 x 1 primitive cell, perspective view.

The segment midpoints (--all-irreps)#

--all-irreps is the pair of --irreps --all-irreps: besides the labeled special points, the page shows the midpoint of every segment of the path, a point on each symmetry line, as a q point of its own: its mode table with the ISO-IR line irreps, its display cell, the arrows, the animation, the bonds and the polyhedra. The page is then phonon_visualize_all.html, so that it and the default page can coexist (-o still renames it; band_vector.yaml is the same file).

cd example/04-10_phonon_visualize/SrTiO3_Pm-3m
crystod-phonon --visualize --dim 4 4 4 -c 221_PPOSCAR_SrTiO3 --bond Ti O 2.1 --all-irreps
# -> phonon_visualize_all.html, band_vector.yaml
* Band path *
  k path (seekpath): GM-X-M-GM-R-X | R-M  (306 q points)
  Labeled points: X, GM, R, M
  Segment midpoints: DT (GM-X), Z (X-M), SM (M-GM), LD (GM-R), S (R-X), T (R-M)

  ... (GM, X, M and R as above)

* Phonon modes at q = DT (0, 1/4, 0) *
Band  Freq (THz)  Irrep   Comp.
   1      2.1278  DT5(2)      1
   2      2.1278  DT5(2)      2
   3      3.7543  DT1         1
  ...
  15     19.8724  DT1         1
  Segment: GM-X
  Display cell: primitive, 1 x 4 x 1 cells

  ... (Z, SM, LD, S and T)

Open the SrTiO3 phonon mode viewer with the segment midpoints full-screen

The page above is the --all-irreps page of the SrTiO3 example, opened on the midpoint DT of GM-X (#q=DT(GM-X)&mode=1); the midpoints have their own row of q buttons and their own dots on the dispersion.

The midpoints and their display cells

The midpoints follow the special points in path order, as in phonon_irreps_all.yaml: for the seekpath path the same points, names and segments; for a --band path the midpoints of its own legs, named by their ISO-IR k-vector type. Each is labeled at the midpoint itself, so its labels are those of phonon_irreps_all.yaml band by band (testsuite section 04-10 compares them). Its display cell is commensurate with the exact fractions of the midpoint: DT (0, 1/4, 0) gets 1 x 4 x 1 primitive cells (20 atoms), LD (1/4, 1/4, 1/4) 4 x 4 x 4 (320 atoms). A midpoint whose display cell would hold more than 1000 atoms is not drawn; a NOTE in * Band path * and on the page names it and the --qpoint that draws it. On the fcc path of Si these are the two SM midpoints, of X-U and of K-GM:

  NOTE: the midpoint SM (3/16, 3/16, 3/8) of K-GM is not drawn: its display cell would hold 4096 atoms (give --qpoint 3/16 3/16 3/8 to draw it)

while DT (1/4, 0, 1/4) of GM-X, LD of GM-L, Q of L-W and V of W-X are drawn (the largest on 2 x 8 x 8 primitive cells). A midpoint that coincides with a special point or with an earlier midpoint (modulo a reciprocal lattice vector) is left out. For the SrTiO3 example the run takes about 4.5 s and the page is about 195 kB.

The midpoints on the page

On the page the midpoints have a row of buttons of their own under “Segment midpoints” (DT (0, 1/4, 0); when two midpoints share a name, two arms of one line type, the button adds the segment: SM (X-U) and SM (K-GM) for Si with --conventional) and a dot on every level in the middle of their leg of the dispersion, which selects them as the dots of the special points do. The hash opens a midpoint by its name (#q=DT, the first point so named), by its name and segment (#q=DT(GM-X)) or by the position of its button (#q=5, the fifth q button).

How the pattern is built#

The partners of a degenerate level are the symmetry-adapted eigenvectors of --vector, and the page draws each one as phonopy’s modulation would: the eigenvector divided by the square root of the atomic mass, with its Bloch phase. In practice:

  • Testsuite section 04-10 checks that the drawn pattern reproduces phonopy’s modulation on the display cell, atom by atom, to 1e-6.

  • At a time-reversal-invariant q (2q a reciprocal lattice vector: GM, X, M, R of a cubic cell) the patterns of the symmetry-adapted partners are real: every atom moves back and forth along its arrow. At any other q (K of a hexagonal crystal, a point on a line) a pattern is complex in general: the atoms run on ellipses, and the arrows show the phase-0 snapshot.

  • With --nac, the patterns and labels at GM are those of the TO modes (phonopy applies no direction of approach at GM itself; the NOTE of * Band path * says so), while the bands near GM and band_vector.yaml carry the LO-TO splitting.

band_vector.yaml

band_vector.yaml is the band.yaml that phonopy writes for its band structure with eigenvectors (phonopy --eigvecs), along the path of the page (the --irreps path: seekpath, or --band, 51 q points per leg or --npoints), its vertices named by their ISO-IR labels:

nqpoint: 306
npath: 6
segment_nqpoint:          # q points per leg
- 51
...
labels:                   # the two ends of every leg
- [ 'GM', 'X' ]
- [ 'X', 'M' ]
...
reciprocal_lattice:       # rows a*, b*, c* (1/Angstrom, without 2 pi)
natom: 5
lattice: ...              # the primitive cell (Angstrom)
points: ...               # symbol, fractional coordinates and mass of every atom
phonon:
- q-position: [ 0.0000000, 0.0000000, 0.0000000 ]
  distance: 0.0000000
  band:
  - # 1
    frequency: 0.0000003685          # THz, negative when imaginary
    eigenvector:
    - # atom 1
      - [ 0.68807195292903, 0.00000000000000 ]   # [re, im] of x, y, z
      - [ -0.00414863873523, 0.00000000000000 ]
      - [ -0.06380814382605, 0.00000000000000 ]
    - # atom 2
      ...

Each band carries its eigenvector: one list per atom of the primitive cell with the [re, im] pairs of its x, y and z components, the mass-weighted eigenvector of phonopy’s dynamical matrix in phonopy’s atom-position phase convention (unit norm over the whole vector). These are phonopy’s plain eigenvectors at every q of the path, not the symmetry-adapted partners the page draws (within a degenerate level they can be any orthonormal combination). phonopy’s own tools (phonopy-bandplot) and any YAML reader (yaml.safe_load) read the file. Its name is fixed; -o renames the page only.

Options

option

meaning

--qpoint R or --qpoint 0.5 0.5 0

show that q point only (a label, or three primitive reciprocal coordinates, fractions allowed); default every labeled special point of the path. A point that is not a vertex of the path gets no dot on the dispersion

--all-irreps

also the midpoint of every segment of the path, as --irreps --all-irreps labels them (the symmetry lines DT, Z, SM, …); the page is named phonon_visualize_all.html; not with --qpoint

--band, --band-labels, --npoints

the path, as in --irreps (default seekpath, 51 q points per leg)

--threshold F

frequency in THz below which a level is drawn in red (default -0.1)

--conventional

display the conventional cell instead of the primitive cell

--bond EL1 EL2 MAX

bonds and coordination polyhedra (repeatable), as in crystod --visualize

--nac

the non-analytical term correction with BORN (TO patterns at GM)

--readfc

read FORCE_CONSTANTS instead of FORCE_SETS

--tolerance

the degeneracy tolerance of the irrep labels in THz (default 1e-3)

-o FILE

the name of the page (default phonon_visualize.html, with --all-irreps phonon_visualize_all.html); band_vector.yaml keeps its name

Limitations
  • The display cell of a general q is large: each axis is multiplied by the denominator of q (fractions with denominators up to 48), so --qpoint 0.3 0.1 0.2 draws 10 x 10 x 5 primitive cells, 2651 atoms for ScF3. Above 1000 atoms the run prints a NOTE in the block of that q point; the page still works, more slowly. The cell is a diagonal multiple of the primitive (or conventional) cell, not the smallest supercell commensurate with q.

  • With --all-irreps, a segment midpoint whose display cell would hold more than 1000 atoms is skipped with a NOTE (the 16ths of the fcc path: 4096 atoms for Si); --qpoint with its coordinates draws it.

  • The bond search of --bond compares every EL1 atom with every EL2 atom in the 27 periodic images of the display cell (vectorized with NumPy, but its cost grows with the square of the number of atoms): about 1 s for a few hundred atoms.

  • The page loads plotly 2.32.0 from its CDN, as the SALC viewer does, so the first opening needs network access (the browser keeps it afterwards).

  • Arrows are in Å, but the atoms are drawn as markers of a fixed size in pixels: a short displacement can hide inside its atom. Zoom in, raise the amplitude, uncheck show atoms, or look down an axis.

  • During the animation the polyhedra keep the faces of their equilibrium shape, which is right for the small amplitudes a vibration has.

  • The modes are shown at the labeled special points of the path, with --all-irreps also at the midpoint of every segment, or at one --qpoint (any q, by its coordinates); not at every q of the dispersion.

In Python the page is built by crystod.phonon.phonon_viewer_data and written by write_phonon_viewer_html; write_band_vector_yaml writes the YAML file (Phonon mode viewer).

04-11. Subgroups from imaginary modes (--subgroup)#

Testsuite section 04-11

When a phonon band goes imaginary, the structure is unstable against the distortion of that mode, and the symmetry it can lower to is fixed by the irrep of the mode. --subgroup labels every imaginary mode and lists the isotropy subgroups of its irrep — the possible daughter phases — in one step.

See also

Theory: Order parameters and isotropy subgroups — what an order-parameter direction and an isotropy subgroup are; Matching the order-parameter directions of imaginary phonon modes — how --modulate finds the mode combination of every direction.

Input

Command

Output

POSCAR + FORCE_SETS

crystod-phonon --subgroup -c POSCAR --dim 4 4 4

terminal: every imaginary level of the q points of the supercell, most unstable first, with its irrep and the isotropy subgroups of its order-parameter directions; the same report in SUBGROUP_{formula}_all

the same

add --qpoint R

that q point only; the report in SUBGROUP_{formula}_{q} (SUBGROUP_SrTiO3_R)

the same

add --modulate

one MPOSCAR per direction, with the --modulation command that rewrites it (also in the report file)

the same

add --no-files

the report on the terminal only (-o is refused: the names are fixed)

phonopy_params.yaml

--yaml phonopy_params.yaml in place of --dim and -c

the same

crystod-phonon --subgroup -c 221_PPOSCAR_SrTiO3 --dim "4 4 4"
* Parent structure *
Pm-3m (No. 221)

* Imaginary mode at q = (0.5, 0.5, 0.5) (R) *
mode 1, 2, 3: -1.086709 THz, irrep R5- (degeneracy 3)

* Order parameter directions and isotropy subgroups *
irrep                subgroup           size  index
R5-(0,0,a)           140 I4/mcm         2     6
R5-(a,a,a)           167 R-3c           2     8
R5-(0,a,a)           74 Imma            2     12
R5-(0,a,b)           12 C2/m            2     24
R5-(a,a,b)           15 C2/c            2     24
R5-(a,b,c)           2 P-1              2     48

How to read it:

  • * Imaginary mode at q = ... (R) *: the q point, and the modes, the frequency and the irrep of the imaginary level. The name in parentheses is that of the tabulated star q belongs to, in the frame of the labels; a q point outside the tabulated stars (a point on a line, or the -k partner PA of P in I-4) is printed without a name, its levels carrying their ISO-IR labels (PA3, …).

  • Each row of the table is one order-parameter direction of the degenerate level with the isotropy subgroup it leads to (subgroup, size, index, as in crystod-group --parent). Freezing in a single eigenvector explores only one of them: the R-point triplet of cubic SrTiO3 gives I4/mcm along (0,0,a), but the same triplet also reaches R-3c along (a,a,a) and Imma along (0,a,a).

Options

Options:

  • Without --qpoint, every q point commensurate with the supercell is scanned (64 of them for a 4x4x4 supercell) and the imaginary levels are reported most unstable first, so the unstable q points do not have to be known in advance. With --qpoint R (a label or three coordinates) only that q point is analyzed.

  • --threshold sets the frequency below which a mode counts as imaginary (default -0.1 THz; the acoustic modes at Γ, rigid translations, are never listed, whatever the threshold).

  • --yaml phonopy_params.yaml may be used instead of --dim/-c.

  • The same enumeration is available programmatically as crystod.phonon.imaginary_mode_subgroups.

Generating the daughter structures (--modulate)#

--modulate runs the --modulation step for every listed direction, so the candidate structures of a structure search come out of the same command:

crystod-phonon --subgroup -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint R --modulate
* Distorted structures (amplitude 0.3 A) *
R5-(0,0,a)             I4/mcm     -> MPOSCAR_R_R5-_0-0-a_I4mcm
    crystod-phonon --modulation -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 --amplitude 0.3
R5-(0,a,a)             Imma       -> MPOSCAR_R_R5-_0-a-a_Imma
    crystod-phonon --modulation -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 2 --amplitude 0.3 0.3
R5-(0,a,b)             C2/m       -> MPOSCAR_R_R5-_0-a-b_C2m
    crystod-phonon --modulation -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 2 --amplitude 0.3 0.16434
R5-(a,a,a)             R-3c       -> MPOSCAR_R_R5-_a-a-a_R-3c
    crystod-phonon --modulation -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3 0.3 0.3
R5-(a,a,b)             C2/c       -> MPOSCAR_R_R5-_a-a-b_C2c
    crystod-phonon --modulation -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3 0.3 0.16434
R5-(a,b,c)             P-1        -> MPOSCAR_R_R5-_a-b-c_P-1
    crystod-phonon --modulation -c 221_PPOSCAR_SrTiO3 --dim "4 4 4" --qpoint 0.5 0.5 0.5 --mode 1 2 3 --amplitude 0.3 0.16434 0.08913
  • One POSCAR per direction, plus the --modulation command that reproduces it — copy-paste it as printed and it rewrites exactly that file, so an amplitude or a mode can be changed afterwards without working out the combination again.

  • The file is named after the space group --modulate measured at 1e-5; the command reports the one at --modulation’s default 0.1 Å, where a direction with a small component can read as a more symmetric neighbour (R5-(a,b,c) above prints C2/c): add --tolerance 1e-5 to the command to see the same group.

  • --amplitude scales all of them (default 0.3 Å). The names read MPOSCAR_{q}_{irrep}_{direction}_{spacegroup}; when one q point carries two imaginary levels of the same irrep, the second gains a _mode{n} suffix (n = its first mode number) so the two sets do not overwrite each other.

  • The combination of the degenerate modes behind each direction is measured (the space group of each generated structure), not assumed. A direction that no candidate reproduces is reported, never guessed at; generate it with --modulation by hand:

  note: no candidate reproduced M5-(0,0;a,0;0,a) (I4/mmm); generate it with --modulation by hand.

Every enumerated row therefore ends up either as a file or as a note. The directions that need a note belong to large order parameters (a multi-arm star times a degenerate level): for X5- of cubic ScF3 (three arms times a pair) the six-component directions such as X5-(a,a;a,a;a,a) (R-3c) are among them.

A star with several arms

A star with several arms is handled the same way, through the multi-q form of --modulation — the M point of a perovskite needs one arm for M3+(0;0;a), two for (0;a;a) and three for (a;a;a):

M3+(0;0;a)             P4/mbm     -> MPOSCAR_M_M3+_0_0_a_P4mbm
    crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --dim "4 4 4" --qpoint 0.5 0.5 0 --mode 1 --amplitude 0.3
M3+(0;a;a)             I4/mmm     -> MPOSCAR_M_M3+_0_a_a_I4mmm
    crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --dim "4 4 4" --qpoint1 0.5 0.5 0 --mode1 1 --amplitude1 0.3 --qpoint2 0.5 0 0.5 --mode2 1 --amplitude2 0.3
M3+(a;a;a)             Im-3       -> MPOSCAR_M_M3+_a_a_a_Im-3
    crystod-phonon --modulation -c 221_PPOSCAR_ScF3 --dim "4 4 4" --qpoint1 0.5 0.5 0 --mode1 1 --amplitude1 0.3 --qpoint2 0.5 0 0.5 --mode2 1 --amplitude2 0.3 --qpoint3 0 0.5 0.5 --mode3 1 --amplitude3 0.3

04-12. Mode-resolved force constants (--mode-resolved-fc)#

Example directory: example/04-12_phonon_mode_fc (testsuite section 04-12); after pip install: crystod-example 04-12

Note

The example/... paths on this page are those of a clone of the repository, used from its root. After pip install CrystOD, run crystod-example CC-NN (the number of the example directory) in your working directory first: it copies that directory and the shared test_POSCARs/ into ./example/, and the commands then run from there unchanged (see crystod-example).

How stiff is each phonon mode, and how stiff is the whole subspace of one irrep? --mode-resolved-fc gives, at the special q points of the space group (the points --irreps surveys), the force constant k of every degenerate set of modes, its effective mass, and the force-constant matrix restricted to the subspace of every irrep (the irrep-resolved Hessian), and writes them to mode-resolved-fc.yaml. A negative k marks an unstable (imaginary) mode.

See also

Theory: Mode-resolved force constants and irrep-resolved Hessians — why k = mu w, why the partners of a degenerate set share one k, why the irrep blocks have the sign pattern of the frequencies, and how k relates to the amplitude of a symmetry-mode decomposition.

Input

Command

Output

POSCAR + FORCE_SETS of a --dim supercell

crystod-phonon --mode-resolved-fc --dim 4 4 4 -c POSCAR

mode-resolved-fc.yaml (per special q point: the frequency, effective mass and force constant of every degenerate set, and the eigenvalues and trace of every irrep block); terminal: the same as two tables per q point

POSCAR + FORCE_CONSTANTS

add --readfc

the same, from the force constants

the same + BORN

add --nac

the same with the non-analytical term correction (the Γ values stay the analytic ones, below)

the same

add --qpoint R (or --qpoint 0.5 0.5 0.5)

that q point only

the same

add -o FILE

the YAML file under that name

cd example/04-12_phonon_mode_fc/SrTiO3_Pm-3m
crystod-phonon --mode-resolved-fc -c 221_PPOSCAR_SrTiO3 --dim 4 4 4
# -> mode-resolved-fc.yaml   (2-4 s; --readfc reads FORCE_CONSTANTS instead of FORCE_SETS)

The example directory has three cases, each with its README holding the full terminal output: cubic SrTiO3 (Pm-3m, 4x4x4), tetragonal BaTiO3 (P4mm, 4x4x4) and the n = 2 Ruddlesden-Popper Ca3Ti2O7 in its I4/mmm parent (2x2x2). For SrTiO3 the run prints, at Γ and at R:

* Mode-resolved force constants at GM *
  q = [0.0000, 0.0000, 0.0000]
   band  irrep    freq (THz)   mu (amu)    k (eV/A^2)         k/fu  k(-transl.)
    1-3  GM4-(3)      0.0000    36.6970      0.000000     0.000000     acoustic
    4-6  GM4-(3)      2.6629    20.0154      0.580737     0.580737     0.826931
    7-9  GM4-(3)      4.7144    56.6097      5.148077     5.148077     5.737971
  10-12  GM5-(3)      7.3465    15.9994      3.533147     3.533147     3.533147
  13-15  GM4-(3)     15.3054    16.0173     15.352475    15.352475    15.357769

* Irrep-resolved Hessian at GM *
  irrep       dim         trace  eigenvalues (eV/A^2)
  GM4-         12     66.244679  0.000000 0.000000 0.000000 0.825380 0.825380 0.825380 5.799761
                                 5.799761 5.799761 15.456418 15.456418 15.456418
    -transl.    9     66.244679  0.825380 0.825380 0.825380 5.799761 5.799761 5.799761 15.456418
                                 15.456418 15.456418
  GM5-          3     10.599442  3.533147 3.533147 3.533147

* Mode-resolved force constants at R *
  q = [0.5000, 0.5000, 0.5000]
   band  irrep   freq (THz)   mu (amu)    k (eV/A^2)         k/fu
    1-3  R5-(3)     -1.0867    15.9994     -0.077309    -0.077309
    4-6  R4-(3)      3.9891    86.4275      5.627284     5.627284
    7-9  R5+(3)     11.6887    47.8670     26.758864    26.758864
  10-12  R4-(3)     12.6621    16.0398     10.522343    10.522343
  13-14  R3-(2)     14.8133    15.9994     14.365103    14.365103
     15  R2-(1)     23.2302    15.9994     35.326973    35.326973

* Irrep-resolved Hessian at R *
  irrep       dim         trace  eigenvalues (eV/A^2)
  R5-           3     -0.231926  -0.077309 -0.077309 -0.077309
  R4-           6     48.993615  5.558094 5.558094 5.558094 10.773111 10.773111 10.773111
  R5+           3     80.276591  26.758864 26.758864 26.758864
  R3-           2     28.730205  14.365103 14.365103
  R2-           1     35.326973  35.326973

The same numbers are in mode-resolved-fc.yaml, one entry per q point:

mode_resolved_fc:
- q_label: GM
  q_position: [0.0, 0.0, 0.0]
  band_sets:
  - band_indices: [1, 2, 3]
    irrep_label: ['GM4-(3)']
    frequency:   0.0000003973
    effective_mass: 36.697040
    force_constant: 0.000000
    force_constant_per_fu: 0.000000
    acoustic: true
  - band_indices: [4, 5, 6]
    irrep_label: ['GM4-(3)']
    frequency:   2.6629186664
    effective_mass: 20.015438
    force_constant: 0.580737
    force_constant_per_fu: 0.580737
    force_constant_translations_removed: 0.826931
  ...
  irrep_hessian:
  - irrep: GM4-
    dim: 12
    eigenvalues: [0.000000, 0.000000, 0.000000, 0.825380, 0.825380, 0.825380, 5.799761, ...]
    trace: 66.244679
    translations_removed:
      dim: 9
      eigenvalues: [0.825380, 0.825380, 0.825380, 5.799761, ...]
      trace: 66.244679
  ...

The force constant of a mode and its effective mass#

For a degenerate set with the mass-weighted eigenvector e (phonopy’s eigenvector of the dynamical matrix) and the eigenvalue w (the squared angular frequency, negative for an imaginary mode), the displacement pattern is u = M^-1/2 e, normalized to |u^| = 1 A over the primitive cell. Its force constant is the curvature of the energy along that pattern,

k = u^+ Phi(q) u^ = mu w, mu = 1 / sum_i |e_i|^2 / m_i,

in eV/A^2 per primitive cell (the unit of phonopy’s force constants; 1 eV/A^2 = 1000 meV/A^2), with Phi(q) the force-constant matrix of phonopy and mu the effective mass of the mode in amu. In practice:

  • k has the sign of w: an imaginary mode has k < 0, and |k| is how fast the energy falls along the pattern. The R5- rotation of the TiO6 octahedra in SrTiO3 (the instability that condenses at 105 K into I4/mcm) has k = -0.077309 eV/A^2; it moves the O atoms only, so mu = m_O = 15.9994 amu.

  • mu tells which atoms carry the mode. The three polar GM4- optical sets of SrTiO3 have the effective masses of the textbook patterns: Slater (2.66 THz, mu = 20 amu: Ti against the O octahedron), Last (4.71 THz, 57 amu: Sr against the TiO6 unit) and Axe (15.31 THz, 16 amu: the bending of the octahedron).

  • The partners of a degenerate set have the same k (Schur’s lemma), so one value per set is given; the run checks the spread (below 1e-9 eV/A^2).

  • A set that carries two labels by an accidental degeneracy (the acoustic set of BaTiO3, GM1 + GM5 at 0 THz) is split into its irreps by the character projector, and the YAML file gives the values per component. When one of the labels has no set of its own at that q, it gets the rest of the set; a set that still cannot be split gets no k and mu (they would depend on the basis) and a NOTE, and its block carries the joined name (DT1 + DT5).

The translation part of a polar Γ mode. The eigenvector of an optical mode keeps the centre of mass fixed, not the mean position of the atoms, so the pattern u^ of a polar mode, in which atoms of different masses move in opposite directions, carries a uniform translation. The translation stores no energy, so k is smaller than the curvature of the same pattern with the translation removed. The column k(-transl.) (Γ only) projects the uniform translation out of u^ and renormalizes the rest to 1 A: for the Slater mode of SrTiO3 0.580737 against 0.826931 eV/A^2. A non-polar mode carries no translation and has k(-transl.) = k (GM5- of SrTiO3, 3.533147). The polar GM5 instability of BaTiO3 has k = -0.812369 and k(-transl.) = -1.008910 eV/A^2.

The irrep-resolved Hessian#

The second table of each q point restricts the force-constant matrix Phi(q) to the subspace spanned by all modes of one irrep label (every copy and every partner; dim = multiplicity x irrep dimension) and gives its eigenvalues and their trace. The subspace is invariant under Phi(q), so the block does not depend on the basis chosen in it. In practice:

  • The lowest eigenvalue is the stiffness of the softest displacement pattern of unit length that the irrep allows: the stability of the whole irrep subspace, not only of one eigenmode. A negative lowest eigenvalue means that some pattern of that symmetry lowers the energy.

  • Sylvester’s law of inertia: the number of negative eigenvalues of a block equals the number of modes of that irrep with an imaginary frequency (the run checks it on every block). The signs are the same; the values differ, because the eigenmodes minimize the frequency (mass-weighted), the block eigenvectors the stiffness (unit displacement). For an irrep that occurs once they coincide: the R5- block of SrTiO3 is k = -0.077309 three times.

  • In Ca3Ti2O7 (I4/mmm) both the octahedral tilt X3- (k = -1.440908 eV/A^2, mu = 16.6381 amu) and the rotation X2+ (k = -1.201008, mu = 15.9994) are unstable at X: the pair whose trilinear coupling with the polar GM5- mode gives the hybrid improper ferroelectricity of Cmc2_1. X3- occurs six times at X, and its block (dim 6) has the lowest eigenvalue -1.467490: a pattern that mixes the six X3- copies is softer than the tilt eigenmode.

  • At Γ a block that contains the uniform translations is also given with the three translations projected out first (the -transl. row, dim smaller by three): for GM4- of SrTiO3, dim 9 with the lowest eigenvalue 0.825380, the stiffness of the softest polar pattern that does not move the cell as a whole.

* Irrep-resolved Hessian at X *
  irrep       dim         trace  eigenvalues (eV/A^2)
  X3-           6     51.745746  -1.467490 0.402641 2.376627 3.976897 10.790542 35.666529
  X1-           2     19.405036  -1.306353 20.711390
  X2+           2     19.770244  -1.201008 20.971251
  ...

Normalization: per cell, per formula unit and the symmetry-mode amplitude#

  • Per cell. k is the curvature per primitive cell for a pattern of length 1 A over the primitive cell. The same pattern written in an enlarged cell (the 2x2x2 cell of the R point, the Cmc2_1 cell of Ca3Ti2O7) and normalized to 1 A over that cell has the same curvature per that cell: k does not change when the cell is enlarged.

  • Per formula unit. k/fu (force_constant_per_fu) is k / Z with Z the formula units of the primitive cell (the greatest common divisor of the species counts: Z = 1 for SrTiO3 and Ca3Ti2O7, Z = 2 for Si, whose GM5+ set has k = 25.708560 and k/fu = 12.854280 eV/A^2). Unlike k, this depends on the cell: for a pattern normalized to 1 A over a cell with Z_cell formula units, the curvature per formula unit is k / Z_cell. A stability analysis that restricts the Hessian to symmetry-adapted subspaces and quotes it in meV f.u.^-1 A^-2 with unit vectors over the whole cell of the distorted phase gives 1000 k / Z_cell of that cell (k in eV/A^2).

  • The symmetry-mode amplitude. With the amplitude A of a symmetry-mode decomposition (crystod-group --supergroup-cif, the AMPLIMODES normalization) measured over the same cell, the harmonic energy of the pattern per that cell is E_cell = k A^2 / 2. For a polar Γ irrep the amplitude is measured with the uniform translation removed (the origin at the minimum of the total distortion), so it pairs with k(-transl.) and the -transl. blocks.

The values at Γ with --nac#

With --nac the run reads BORN and phonopy adds the non-analytical term to the dynamical matrix at every q away from Γ. At exactly Γ phonopy adds no term (it needs a direction of approach), so the Γ values are the analytic (TO) ones, and the terminal says so with a NOTE under the Γ tables. The other special points of the examples are commensurate with the supercell, where phonopy’s correction reproduces the force constants of the supercell: for ScF3 (example/04-04_phonon_fatband/ScF3_Pm-3m, 4x4x4, with its BORN) the file written with --nac differs from the one without only in the nac: line (testsuite section 04-12 compares GM and R to 1e-6). --nac changes the values only at q points off the supercell grid, given with --qpoint x y z.

  NOTE: --nac: phonopy adds no non-analytical term at exactly Gamma (it needs a q direction), so the
        Gamma values are the analytic (TO) ones

The force constants from Python#

crystod.phonon has the same computation on a phonopy object (built with primitive_matrix="auto"): mode_resolved_force_constants at one q point, survey_mode_resolved_fc at every special point (Γ first), the dataclasses ModeForceConstants, ModeForceConstantSet and IrrepHessianBlock, and write_mode_resolved_fc_yaml, read_mode_resolved_fc and format_mode_resolved_fc for the file and the terminal tables. The band indices of the dataclasses are 0-based (1-based in the YAML file).

import phonopy
from crystod import phonon

ph = phonopy.load(unitcell_filename="221_PPOSCAR_SrTiO3", force_sets_filename="FORCE_SETS",
                  supercell_matrix=[4, 4, 4], primitive_matrix="auto")
result = phonon.mode_resolved_force_constants(ph, [0.5, 0.5, 0.5], q_label="R")
first = result.band_sets[0]
print(first.irrep_labels, first.effective_mass, first.force_constant)
# ['R5-(3)'] 15.9994 -0.0773087...
for block in result.irrep_blocks:
    print(block.irrep, block.dim, block.eigenvalues[0], block.trace)

data = phonon.read_mode_resolved_fc("mode-resolved-fc.yaml")   # the file of the command
The file mode-resolved-fc.yaml

The file is YAML (yaml.safe_load reads it); crystod.phonon.read_mode_resolved_fc returns it as a dictionary and checks that it has the mode_resolved_fc list.

key

content

space_group

Hermann-Mauguin symbol

nac

true with --nac

formula_units_per_primitive_cell

Z, the greatest common divisor of the species counts of the primitive cell

units

the units of force_constant (eV/A^2 per primitive cell, the pattern normalized to 1 A over the primitive cell), force_constant_per_fu, effective_mass (amu) and frequency (THz)

special_points

every special point of the space group with q_label, q_position (fractions of the primitive reciprocal basis), also with --qpoint

mode_resolved_fc

one entry per computed q point: q_label, q_position, band_sets, irrep_hessian

band_sets

one entry per degenerate set: band_indices (1-based), irrep_label (list), frequency (THz, mean of the set, negative for an imaginary mode), effective_mass, force_constant, force_constant_per_fu; at Γ force_constant_translations_removed, or acoustic: true for the acoustic set; a set of several labels that cannot be split has none of the three values (and a NOTE)

components

instead of the values, for a set that carries several labels: one entry per irrep with irrep, n_vectors (the dimension of its part of the set) and the values above

irrep_hessian

one entry per irrep at q: irrep (without the dimension; the labels of a set that cannot be split joined as DT1 + DT5), dim, eigenvalues (eV/A^2, ascending), trace; at Γ, for a block that contains uniform translations, translations_removed with dim, eigenvalues, trace

notes

only when there are remarks: the NOTE lines of that q point in the terminal, as a list of strings

Conventions and the checks of every run
  • q points: the special points of --irreps (ISO-IR labels, named in the frame of the labels), Γ first; --qpoint takes a label (R) or three coordinates of the primitive reciprocal basis, as --vector does. A q with integer coordinates (--qpoint 1 0 0, a reciprocal lattice vector) is computed at Γ, written with q_position: [0.0, 0.0, 0.0], and a NOTE says so: phonopy’s eigenvectors at G carry the phases exp(2 pi i G.r_j), which the uniform translations of the Γ columns do not.

  • The acoustic set at Γ is found from the eigenvectors, not from the frequency: a set is acoustic when its translational weight, the mean over its orthonormal eigenvectors e of the squared projection of e on the three rigid translations (sqrt(m_i) on every atom), exceeds 1/2. It is about 1 for the acoustic set and about 0 for an optical one, also with force constants that keep the acoustic sum rule only approximately (a FORCE_CONSTANTS file without it, where the acoustic frequencies are not zero). The acoustic set has no k(-transl.).

  • A set that carries several labels is split by the character projector of each label, built from a set at the same q that carries that label alone; when all labels but one have such a set, the last one gets the rest of the set. A set that still cannot be split (two or more labels without a set of their own, or one irrep twice) has no mu, k or k/fu (- in the table, no keys in the YAML file): they would depend on the basis chosen inside the set. Its labels are kept, its block is given under the joined name, and a NOTE says why. Near Γ along a line (--qpoint 1e-5 0 0) this happens to every set, as no level there carries a single label.

  • Phi(q) = M^1/2 D(q) M^1/2 is built from phonopy’s dynamical matrix D(q) of the same object, so its phase convention is that of the eigenvectors.

  • The degenerate sets are those of --irreps (--tolerance, default 1e-3 THz); a set whose label cannot be determined gets a generic irrep_N(d) label and a NOTE.

  • The irrep blocks: the patterns of all modes of one label are orthonormalized (QR) into S, and S+ Phi(q) S is diagonalized.

  • On every call the run checks that the eigenvalues of D(q) equal those behind the frequencies of the irrep labeling (to 1e-6 of the largest; the eigenvalues, not the frequencies, are compared, as the square root amplifies rounding near zero) and that the blocks together span the 3n displacements (an error otherwise), and that k is the same for the partners of a set and that every block has as many negative eigenvalues as its irrep has imaginary modes (a NOTE otherwise).

  • A q that is not a q point of the --dim supercell (P = (1/4, 1/4, 1/4) of Ca3Ti2O7 with --dim 2 2 2) gets a NOTE: its dynamical matrix is Fourier-interpolated from the supercell force constants.

  • Units: k, k/fu, k(-transl.), the block eigenvalues and traces in eV/A^2 (phonopy’s unit of force constants; 1 eV/A^2 = 1000 meV/A^2, the unit many stability analyses quote per formula unit); the effective mass in amu; the frequency in THz with phonopy’s conversion factor.

Options and error messages

option

effect

--dim N N N

supercell of the force calculation (required)

-c POSCAR

the unit cell

--readfc

read FORCE_CONSTANTS (full or compact) instead of FORCE_SETS

--nac

read BORN and apply the non-analytical term correction

--qpoint LABEL or --qpoint x y z

that q point only; special_points still lists every point

-o FILE

the YAML file name (default mode-resolved-fc.yaml)

--tolerance T

degeneracy tolerance of the sets in THz (default 1e-3)

The command reads FORCE_SETS (or FORCE_CONSTANTS) from the working directory, as phonopy does. The refusals are one line each, all before the force constants are computed:

crystod-phonon: error: --mode-resolved-fc requires --dim.
crystod-phonon: error: FORCE_SETS not found in the current directory (...). This mode reads FORCE_SETS from the working directory, as phonopy does; ...
crystod-phonon: error: --mode is not used by --mode-resolved-fc.
ERROR: cannot write /nonexistent/dir/x.yaml: the directory /nonexistent/dir does not exist.
ERROR: the cell file 'POSCAR_x' was not found (-c).
ERROR: --dim 2 2 2 makes a supercell of 40 atoms from 5 in '221_PPOSCAR_SrTiO3', but FORCE_SETS holds 320; give the --dim of the force calculation.
ERROR: Unknown q-point label 'Q'. Available labels: GM, R, X, M
ERROR: --qpoint must be either one label or three coordinates.

The options of the other modes are refused: --mode, --mode-index, --component-index, --amplitude, --element, --projection-direction, --yaml, --conventional, --keep-q-coords, --all-irreps, --modulate, --list-qpoints, --export-npz, --band, --npoints and --threshold with “is not used by –mode-resolved-fc”; --bond (only --visualize), --raman-tensor (only --irreps, --vibration), --band-labels (needs --band) and the --unfold options (--child-*, --parent-*, --trans-mat, --no-irreps, --weight-min) with the parser error of the command for them. The parser errors exit with status 2, the ERROR: lines with status 1.

The NOTE lines (after the Hessian table of their q point, and in the notes list of that q point in the YAML file):

NOTE: q = [1, 0, 0] is equivalent to GM; computed at GM
NOTE: q = P = [0.25, 0.25, 0.25] is not commensurate with the 2 x 2 x 2 supercell of the force calculation (--dim): the dynamical matrix at this q is Fourier-interpolated from the supercell force constants
NOTE: --nac: phonopy adds no non-analytical term at exactly Gamma (it needs a q direction), so the Gamma values are the analytic (TO) ones
NOTE: --nac: |q| = 2.5e-07 1/A (2 pi omitted) is below phonopy's q-direction threshold 1e-05 1/A, so no non-analytical term is added at this q; the values are the analytic ones
NOTE: bands 4-6 (DT2(1), DT5(2)) are not split: no set at this q carries DT2 or DT5 alone, so the character projector cannot separate them; their k and mu depend on the basis and are not given, and the DT2 + DT5 block holds them
NOTE: bands 1-3 carry no ISO-IR label; reported as irrep_1(3)

and, when a check fails, the spread of k within a set and the Sylvester count of a block (see the checks above). In the terminal a NOTE is wrapped at 100 columns.
